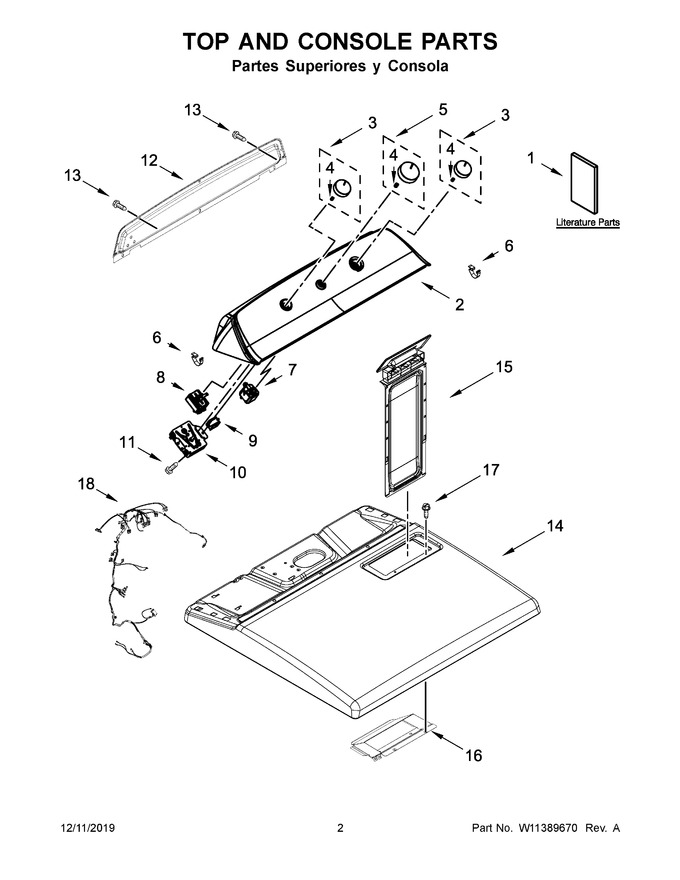

02 - Top And Console Parts
03 - Cabinet Parts
04 - Drum And Internal Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11298250 | Instruction Installation |
|
- | |||||
| 2 | W11244254 | Assembly, Console (chrome) |
|
- | |||||
| 3 | W11611672 | Assembly, Control Knob (chrome) (Replaces: W11367370) |
|
$ 22.56 | |||||
| 4 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 5 | W11662342 | Assembly, Timer Knob (chrome) (Replaces: W11291948) |
|
$ 37.01 | |||||
| 6 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 7 | WPW10446920 | Switch, Push To Start (Replaces: W10446920) |
|
Immediately | $ 88.11 | ||||
| 8 | W10648593 | Switch, Rotary (4 Pos) |
|
$ 37.26 | |||||
| 9 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 10 | WPW10185981 | Assembly, Timer (60 Hz.) (Replaces: W10185981) |
|
$ 346.09 | |||||
| 11 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 8.25 | ||||
| 12 | W10775189 | Panel, Rear |
|
$ 390.13 | |||||
| 13 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 14 | W11222514 | Top (white) (Replaces: W10613389) |
|
Immediately | $ 271.37 | ||||
| 15 | W11778254 | Lint Screen (white) (Replaces: W10717211) |
|
Immediately | $ 54.63 | ||||
| 16 | W10662472 | Collar, Lint Chute |
|
$ 77.87 | |||||
| 17 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 18 | W11523108 | Harness, Wiring (Replaces: W11248246) |
|
- | |||||
| 1A | W11297958 | Use & Care Guide |
|
- | |||||
| 1B | W10876312 | Wiring Diagram |
|
- |
