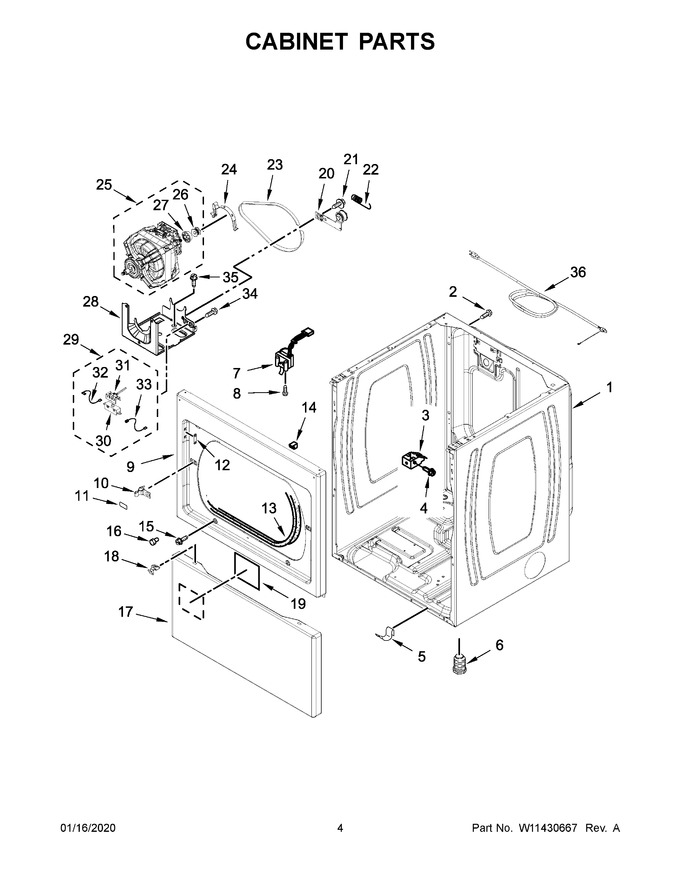

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11417441 | Cabinet (white) (Replaces: W11161907) |
|
$ 396.15 | |||||
| 2 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 3 | 3391846 | Clip, Front Panel |
|
$ 19.99 | |||||
| 4 | W10879744 | Screw |
|
- | |||||
| 5 | WPW10291934 | Clip (Replaces: W10291934) |
|
$ 7.33 | |||||
| 6 | W11025920 | Foot, Dryer (Replaces: W10561321) |
|
Immediately | $ 22.22 | ||||
| 7 | WP3406107 | Switch, Door (Replaces: 3406107) |
|
Immediately | $ 28.08 | ||||
| 8 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 9 | W11832207 | Panel, Front (Replaces: W10694688) |
|
$ 257.54 | |||||
| 10 | W11429589 | Strike, Door (Replaces: 3403431) |
|
Immediately | $ 18.89 | ||||
| 11 | W10521429 | Cover, Strike (white) |
|
- | |||||
| 12 | W10191265 | Plug, Hinge (white) |
|
$ 41.84 | |||||
| 13 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 14 | WP345670 | Lock Top (Replaces: 345670) |
|
Immediately | $ 7.28 | ||||
| 15 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 16 | 693152 | Bumper |
|
$ 10.36 | |||||
| 17 | WP3406797 | Panel, Toe (white) (Replaces: 697215) |
|
$ 225.23 | |||||
| 18 | WP3388229 | Retainer (Replaces: 3388229) |
|
Immediately | $ 7.61 | ||||
| 19 | W11668653 | Panel, Dampening (Replaces: W10836097) |
|
$ 27.86 | |||||
| 20 | WPW10344193 | Pulley-idler Assembly (Replaces: W10344193) |
|
Immediately | $ 79.16 | ||||
| 21 | WP3389420 | Screw (Replaces: 3389420) |
|
$ 7.76 | |||||
| 22 | WPW10446781 | Spring, Idler (Replaces: W10446781) |
|
Immediately | $ 23.22 | ||||
| 23 | WPW10131172 | Belt, Drive (Replaces: W10131172) |
|
Immediately | $ 40.19 | ||||
| 24 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 25 | W10841144 | Motor (Replaces: W10396031) |
|
Immediately | $ 255.66 | ||||
| 26 | WP8066184 | Pulley, Motor (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 27 | WP3393657 | Restrainer, Belt (Replaces: 3393657) |
|
Immediately | $ 125.17 | ||||
| 28 | WP3387118 | Bracket, Motor (Replaces: 3387118) |
|
$ 126.24 | |||||
| 29 | 279782 | Switch Assembly (Replaces: 8066134) |
|
Immediately | $ 52.57 | ||||
| 30 | 279782 | Switch, Belt (Replaces: 3394881) |
|
Immediately | $ 52.57 | ||||
| 31 | WP8066120 | Lever, Belt Switch (Replaces: 8066120) |
|
Immediately | $ 31.29 | ||||
| 32 | 3398948 | Wire, Jumper (broken Belt Switch) |
|
$ 58.19 | |||||
| 33 | W10167612 | Wire, Belt Switch |
|
$ 12.08 | |||||
| 34 | WP98129 | Screw (Replaces: 98129) |
|
$ 7.36 | |||||
| 35 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 36 | W11222083 | Cord, Power (Replaces: W10869141) |
|
$ 113.96 |
