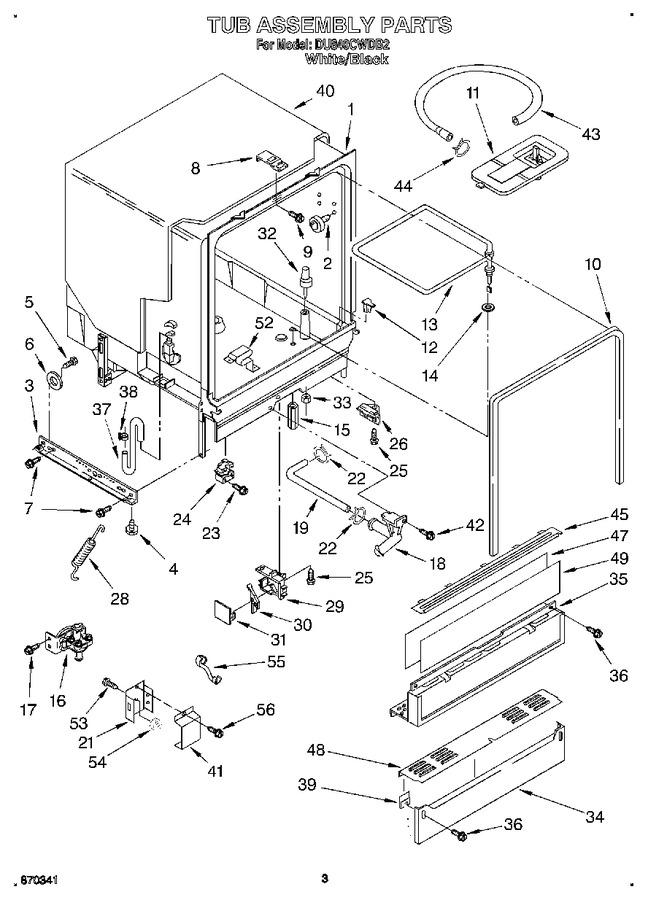

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3375129		Tub And Support Assembly		Appelez-nous	-
2	3369078		Tub, Wheel Assembly (8)		Appelez-nous	-
3	3368932		Runner (2)		Appelez-nous	-
4	8193716		Leveler (2)   (Replaces: 3374849)			Immediately	$ 80.06
5	3370389		Screw, Shoulder (2)				$ 5.70
6	302819		Wheel (2)				$ 5.65
7	WP681414		Screw, 10-16 X 1/2 (4)   (Replaces: 343641)			Immediately	$ 7.62
8	3374719		Plate, Latch		Appelez-nous	-
9	3374720		Screw				$ 28.23
10	WPW10509257		Gasket   (Replaces: 3368994)			Immediately	$ 68.27
11	WP3369322		Grate   (Replaces: 3369322)				$ 89.15
12	WP8528862		Deflector (2)   (Replaces: 3369052)				$ 69.04
13	WPW10082894		Heater   (Replaces: 3372523)				$ 127.37
14	WP717273		Washer, Rubber (2)   (Replaces: 717273)			Immediately	$ 6.80
15	3369073		Nut (2) (heater Terminal)		Appelez-nous	-
16	3374621		Water Valve				$ 79.23
17	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 7.56
18	3369421		Check, Valve Assembly		Appelez-nous	-
19	3369180		Hose, Coupler		Appelez-nous	-
21	3370292		Box, Terminal		Appelez-nous	-
22	371499		Clamp (double)				$ 12.95
23	WP489128		Screw   (Replaces: 3370225)				$ 10.26
24	W10102260		Relay   (Replaces: 3369063)				$ 128.76
25	WP304231		Screw, 8-18 X 1/2   (Replaces: 304231)			Immediately	$ 7.33
26	WP3368928		Fuse, Thermal   (Replaces: 3368928)			Immediately	$ 73.41
28	3373228		Spring, Door (2)				$ 24.53
29	3369048		Housing, Float Switch				$ 46.38
30	3369067		Switch, Float		Appelez-nous	-
31	3369049		Cover, Switch Housing		Appelez-nous	-
32	WP8519552		Float   (Replaces: 3369072)				$ 112.43
33	717488		Nut				$ 12.83
34	3368942		Toe, Panel		Appelez-nous	-
35	WP3369193		Panel, Access   (Replaces: 3369193)				$ 154.45
36	WP302868		Screw, 8-18 X 1/2 (4)   (Replaces: 302868)			Immediately	$ 7.36
37	3369414		Hose, Inlet		Appelez-nous	-
38	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.94
39	3374718		Clip, Grounding		Appelez-nous	-
40	W11086533		Shield, Sound   (Replaces: 3375549)			Immediately	$ 28.17
41	300068		Cover Assembly Terminal Box				$ 30.14
42	W11693756		Screw, 8-18 X 1/2   (Replaces: 359625)			Immediately	$ 13.28
43	WP3374077		Hose, Drain   (Replaces: 3368781)			Immediately	$ 92.01
44	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
45	WP3372412		Retainer, Access Panel   (Replaces: 3372412)				$ 94.13
47	3369526		Spacer, Corrugated				$ 25.23
48	3374728		Extension & Clip Assembly				$ 66.42
49	3369604		Access Panel (almond)		Appelez-nous	-
49	3370868		Access Panel (white/black)				$ 26.11
52	3368987		Support, Heater		Appelez-nous	-
53	WP250830		Screw, 8-32 X 1/2   (Replaces: 3371578)				$ 7.90
54	WP488130		Nut, 8-32 (2)   (Replaces: 3371579)				$ 6.59
55	3370307		Relief, Strain		Appelez-nous	-
56	3369138		Screw, 8-18				$ 5.81
