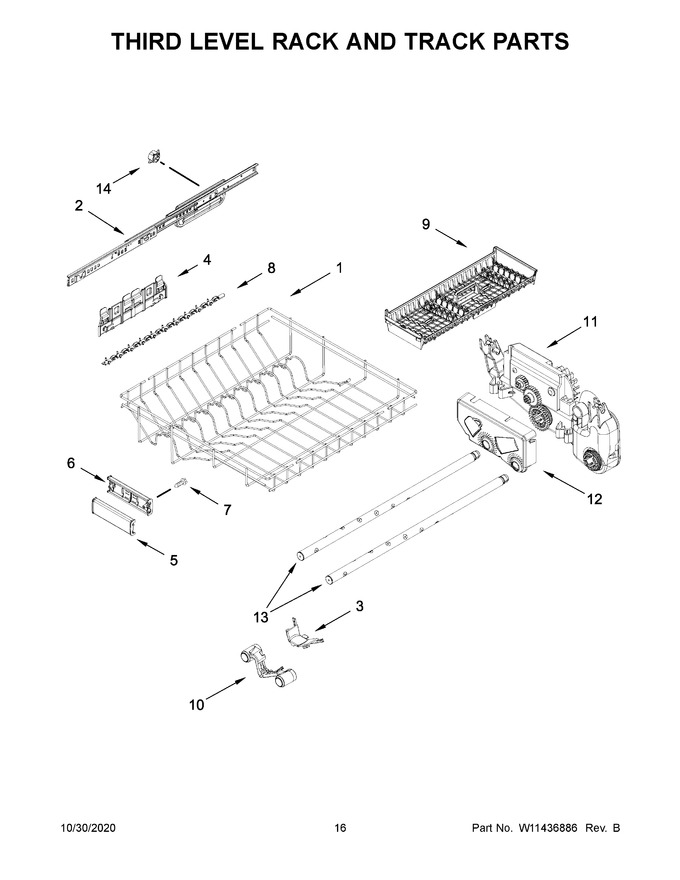

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11800206		Rack, Third Level   (Replaces: W11127727)			Immediately	$ 160.52
2	W11047813		Track Assembly (left Hand)				$ 163.04
3	W11573754		Hanger, Tube   (Replaces: W11184071)			Immediately	$ 17.49
4	W11130709		Mount, Dishrack				$ 68.00
5	W11392620		Handle, Dishrack Front				$ 107.52
6	W11268681		Handle, Dishrack Rear			Immediately	$ 104.72
7	WP9741232		Screw   (Replaces: 9741232)			Immediately	$ 4.56
8	W11202101		Cup Guard		Appelez-nous	-
9	W11820595		Silverware Tray   (Replaces: W11087823)				$ 61.31
10	W11568642		Bracket, Front Hanger   (Replaces: W10830577)			Immediately	$ 17.26
11	W11677712		Drive Box Assembly, Manifold   (Replaces: W10830523)				$ 116.55
12	W11101860		Cover, Wash Tube				$ 27.92
13	W11825823		Tube, Wash   (Replaces: W10831864)				$ 55.80
14	W11545286		Nut, Tub   (Replaces: W10920244)			Immediately	$ 15.39
2A	W11047815		Track Assembly (right Hand)				$ 163.04

    View Diagram in Separate Window       Print Part List
