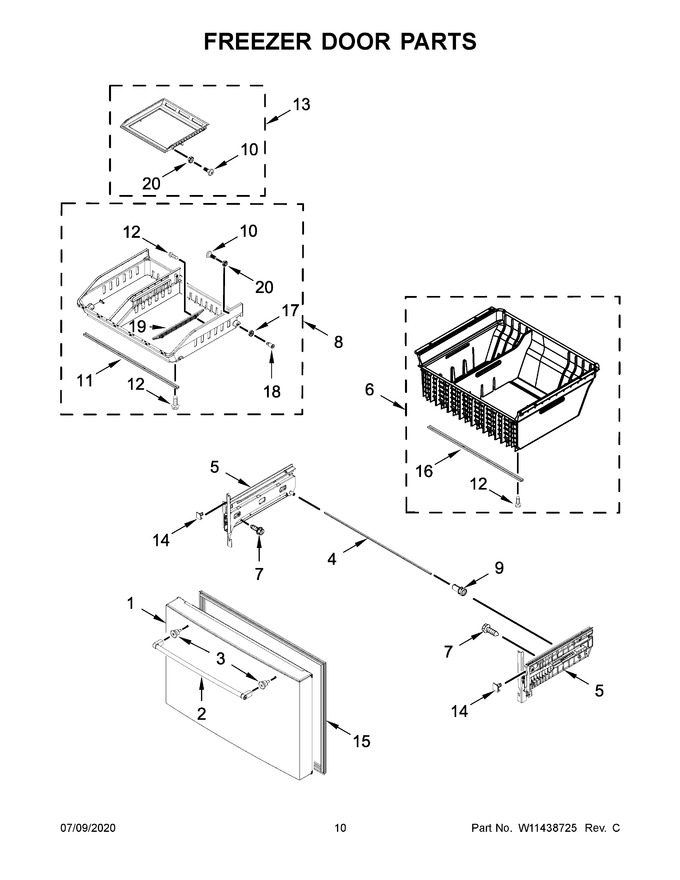

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10849518 | Door, Freezer (includes Door Gasket) (stainless) (Replaces: W10798127) |
|
$ 1,235.72 | |||||
| 2 | W11483535 | Handle, Door (stainless) (Replaces: W11357272) |
|
$ 194.87 | |||||
| 3 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| 4 | W11173556 | Shaft, Rack (Replaces: W10851956) |
|
$ 32.38 | |||||
| 5 | W10795842 | Assembly, Bracket (left Hand) |
|
$ 272.17 | |||||
| 6 | W10795850 | Assembly, Bottom Pan |
|
$ 239.63 | |||||
| 7 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 8 | W11102086 | Assembly, Top Pan |
|
$ 334.90 | |||||
| 9 | WPW10277361 | Collar, Gear (Replaces: W10277361) |
|
$ 12.09 | |||||
| 10 | 67006692 | Screw (Replaces: 12991401) |
|
$ 10.79 | |||||
| 11 | W11677723 | Support, Pan (Replaces: W10469177) |
|
Immediately | $ 155.10 | ||||
| 12 | WP489443 | Screw (stainless) (Replaces: 489443) |
|
Immediately | $ 8.33 | ||||
| 13 | W10889462 | Assembly, Upper Half Pan (Replaces: W10795834) |
|
- | |||||
| 14 | WPW10485096 | Stop, Pan (left Hand) (Replaces: W10485096) |
|
$ 83.65 | |||||
| 15 | W11585972 | Gasket, Door (grey) (Replaces: W10868406) |
|
$ 244.55 | |||||
| 16 | W10697812 | Bar, Support |
|
- | |||||
| 17 | W10874021 | Roller, Pan |
|
$ 98.63 | |||||
| 18 | W11573594 | Axle, Roller (Replaces: W10643690) |
|
$ 19.14 | |||||
| 19 | W10830658 | Rail, Guard |
|
- | |||||
| 20 | W10742424 | Roller |
|
$ 16.05 | |||||
| 14A | WPW10485089 | Stop, Pan (right Hand) (Replaces: W10485089) |
|
$ 86.71 | |||||
| 5A | W10795846 | Assembly, Bracket (right Hand) |
|
$ 272.17 |
