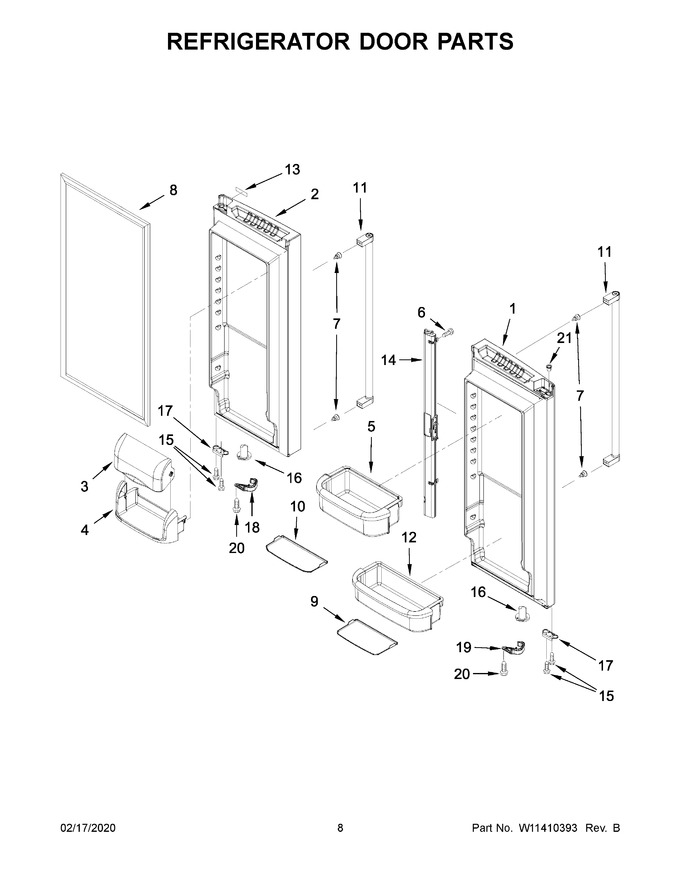

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107888WQ | Door, Left (white) (Replaces: 13107888W) |
|
$ 896.28 | |||||
| 2 | 13107887WQ | Door, Right (white) (Replaces: 13107887W) |
|
$ 904.28 | |||||
| 3 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 74.40 | ||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 79.21 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 69.51 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.35 | ||||
| 8 | W10830189 | Gasket, Door (white) |
|
$ 255.07 | |||||
| 9 | W11402028 | Gripper, Gallon (Replaces: W10449760) |
|
Immediately | $ 80.77 | ||||
| 10 | WPW10450021 | Gripper, Medium (Replaces: W10450021) |
|
Immediately | $ 90.84 | ||||
| 11 | W11483532 | Handle, Door (stainless) (Replaces: W10775000) |
|
Immediately | $ 160.21 | ||||
| 12 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 72.98 | ||||
| 13 | W10876598 | Nameplate (grey) (Replaces: W10765861) |
|
Immediately | $ 65.54 | ||||
| 14 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 290.84 | ||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 16 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 7.34 | ||||
| 17 | 12968202W | Stop, Door (white) |
|
$ 62.36 | |||||
| 18 | W10918120 | Latch, Door Closer Right Hand (white) (Replaces: W10833738) |
|
Immediately | $ 15.31 | ||||
| 19 | W10918118 | Latch, Door Closer Left Hand (white) (Replaces: W10833740) |
|
$ 15.31 | |||||
| 20 | WP489474 | Screw (Replaces: 12990519) |
|
Immediately | $ 7.70 | ||||
| 21 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 14A | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
$ 170.11 | |||||
| 16A | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 17A | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 18A | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 15.88 | ||||
| 19A | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 15.88 | |||||
| 1A | 13107888SQ | Door, Left (stainless) (Replaces: 13107888S) |
|
$ 1,114.83 | |||||
| 2A | 13107887SQ | Door, Right (stainless) (Replaces: 13107887S) |
|
$ 1,331.42 | |||||
| 8A | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 223.74 |
