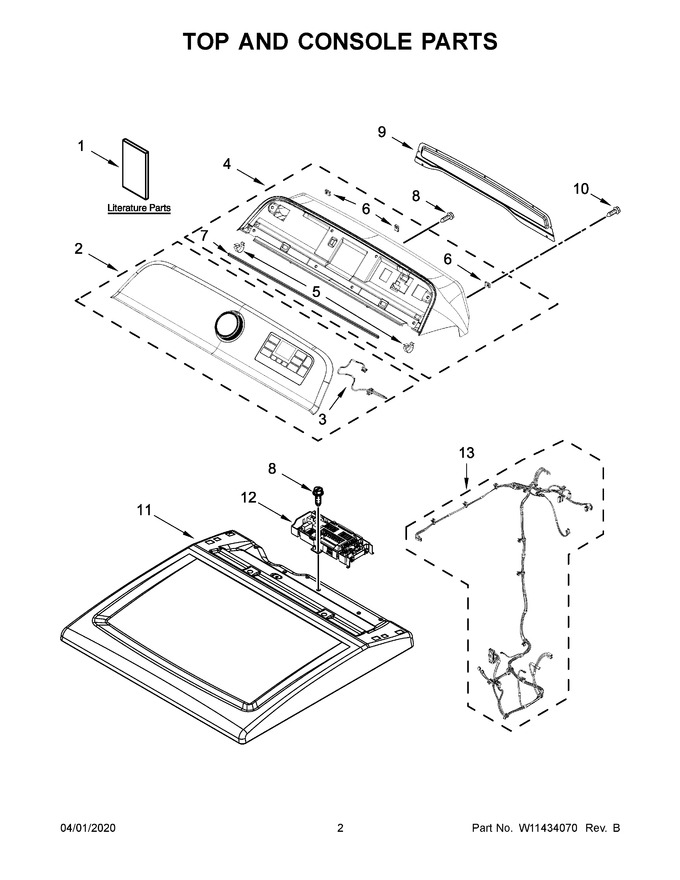

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11268643 | Installation Instructions |
|
- | |||||
| 2 | W11413568 | Assembly, Console Fascia (complete) (Replaces: W11164012) |
|
- | |||||
| 3 | W11721377 | Harness, User Interface (hmi) (Replaces: W11164276) |
|
$ 31.09 | |||||
| 4 | W11406680 | Console (chrome Shadow) (Replaces: W11128049) |
|
- | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.59 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 8.13 | |||||
| 7 | W11757379 | Seal Console (Replaces: W10745410) |
|
- | |||||
| 8 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 9 | W10622402 | Panel, Rear Console |
|
- | |||||
| 10 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 11 | W11051477 | Top (chrome Shadow) (Replaces: W10681117) |
|
$ 358.85 | |||||
| 12 | W11526012 | Control, Electronic (acu) (Replaces: W11404276) |
|
- | |||||
| 13 | W11164053 | Main Harness |
|
- | |||||
| 1A | W11175222 | Tech Sheet |
|
- | |||||
| 1B | W11175228 | Quick Start Guide |
|
- |
