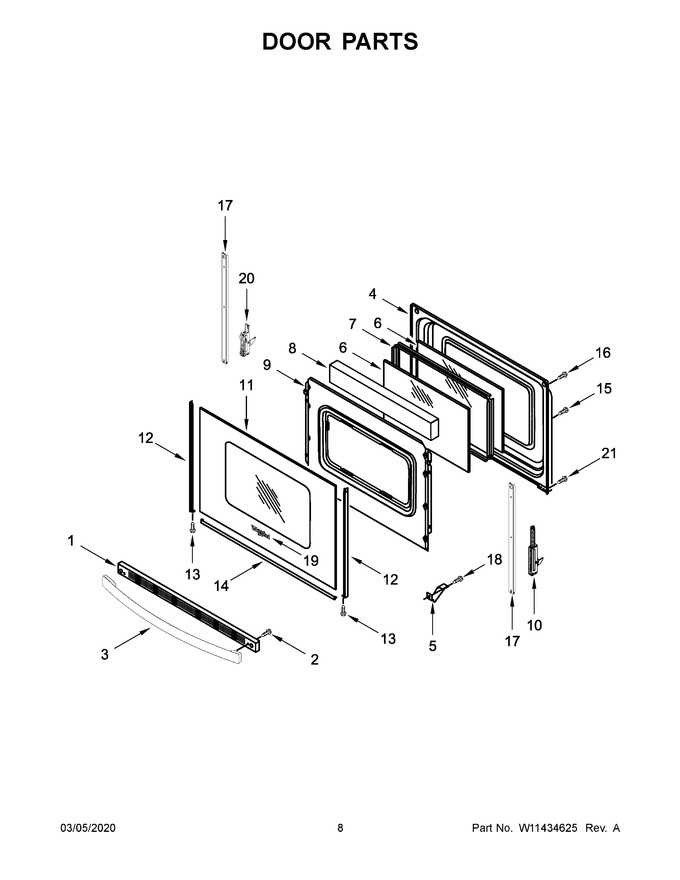

05 - Door Parts


06 - Drawer Parts


07 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Trim, Top (black)   (Replaces: W10310922)			Immediately	$ 157.83
2	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
3	W11398742		Handle, Door (includes Standoff) (stainless)   (Replaces: W11039070)				$ 222.20
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 335.60
5	W10137382		Clip, Panel			Immediately	$ 43.58
6	WP8053948		Glass, Inner   (Replaces: 9758162)			Immediately	$ 208.85
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 81.08
8	WPW10278991		Insulation, Door Strip   (Replaces: W10278991)			Immediately	$ 91.23
9	W11539580		Retainer, Insulation   (Replaces: 9761357)				$ 209.98
10	WPW10299224		Hinge, Active (with Spring)   (Replaces: W10299224)			Immediately	$ 66.14
11	WPW10409946		Glass, Outer (black)   (Replaces: W10409946)				$ 287.33
12	W10761018		Trim, Side (black (left))   (Replaces: W10746436)			Immediately	$ 49.32
13	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
14	WP8523177		Trim, Lower (black)   (Replaces: 8523177)				$ 149.27
15	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
16	WPW10200660		Screw   (Replaces: W10200660)			Immediately	$ 7.42
17	W11502236		Door Strap   (Replaces: W11379944)			Immediately	$ 24.91
18	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
19	W11178521		Badge, Whirlpool   (Replaces: W10884775)			Immediately	$ 56.82
20	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 63.67
21	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
12A	W10761014		Trim, Side (black (right))   (Replaces: W10746435)			Immediately	$ 65.66
