01 - Cover Sheet

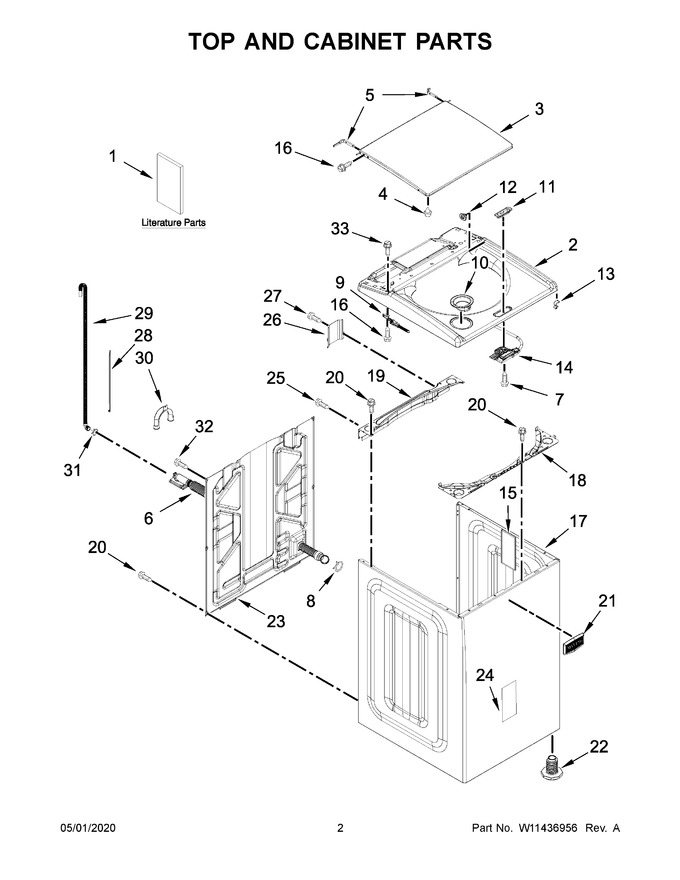

02 - Top And Cabinet Parts
03 - Console And Dispenser Parts
04 - Motor, Basket And Tub Parts
05 - Pump Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11128376 | Instructions, Installation |
|
- | |||||
| 2 | W11097645 | Top (white) (Replaces: W10635913) |
|
Immediately | $ 368.83 | ||||
| 3 | W11259006 | Assembly, Lid (glass) (white) (Replaces: W11082608) |
|
Immediately | $ 500.06 | ||||
| 4 | W11398707 | Bumper, Lid (Replaces: W10631074) |
|
Immediately | $ 23.30 | ||||
| 5 | WP8563965 | Hinge, Wire (left) (Replaces: 8563965) |
|
Immediately | $ 30.91 | ||||
| 6 | W11035296 | Hose, Internal Drain (Replaces: W10786886) |
|
$ 61.20 | |||||
| 7 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.55 | ||||
| 8 | WP285655 | Clamp, Hose (Replaces: W11375994) |
|
Immediately | $ 8.81 | ||||
| 9 | W11401116 | Hinge, Lid (left) (Replaces: W10594153) |
|
Immediately | $ 161.36 | ||||
| 10 | W11234069 | Bezel, Bleach Dispenser (white) (Replaces: W11171193) |
|
$ 104.24 | |||||
| 11 | W11237157 | Bezel, Lid Lock (white) (Replaces: W11187057) |
|
$ 30.61 | |||||
| 12 | W11168238 | Spacer, Lid Hinge (white) (Replaces: W10708964) |
|
Immediately | $ 18.48 | ||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 14 | W10810403 | Assembly, Lid Lock (white) (Replaces: W10787878) |
|
Immediately | $ 108.77 | ||||
| 15 | WP8564458 | Absorber, Impact (Replaces: 8564458) |
|
Immediately | $ 8.38 | ||||
| 16 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 17 | W10676680 | Cabinet (white) |
|
$ 406.86 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (white) (Replaces: W11172902) |
|
$ 79.79 | |||||
| 19 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 21 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 42.36 | ||||
| 22 | WPW10687506 | Foot Assembly, Leveling (Replaces: W10687506) |
|
Immediately | $ 26.07 | ||||
| 23 | W11417171 | Panel, Rear (Replaces: W10612644) |
|
$ 277.67 | |||||
| 24 | W11197416 | Absorber, Impact (Replaces: W10688364) |
|
Immediately | $ 23.38 | ||||
| 25 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 7.55 | ||||
| 26 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 27 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 8.20 | ||||
| 28 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 29 | W11244231 | Hose, Outer Drain Assembly (Replaces: W11203364) |
|
Immediately | $ 32.07 | ||||
| 30 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 | |||||
| 31 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 32 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 33 | WP313808 | Screw (Replaces: 311932) |
|
$ 8.30 | |||||
| 1A | W10911450 | Owners Manual |
|
- | |||||
| 1B | W10900071 | Quick Start Guide |
|
- | |||||
| 1C | W11253566 | Energy Guide |
|
- | |||||
| 5A | WP8572974 | Hinge, Wire (right) (Replaces: 8572974) |
|
Immediately | $ 30.50 | ||||
| 9A | W11399226 | Hinge, Lid (right) (Replaces: W10594154) |
|
Immediately | $ 120.74 |
