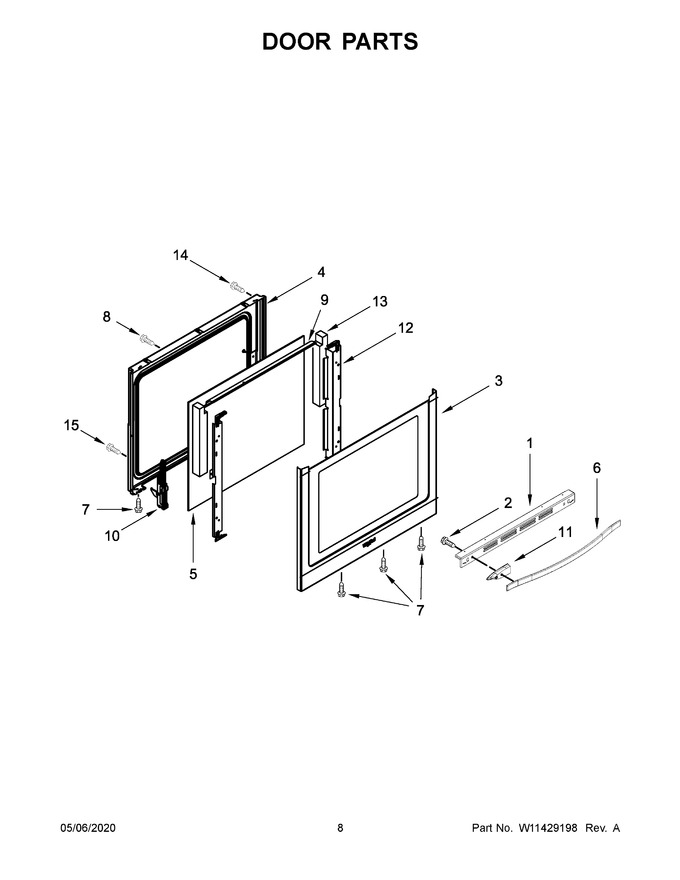

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11205076		Trim, Vent (stainless)   (Replaces: W10842333)				$ 130.81
2	W11396735		Screw   (Replaces: W10426267)				$ 13.28
3	W10909032		Glass, Outer (stainless (includes Skin And Badge))   (Replaces: W10844776)				$ 340.13
4	WPW10297318		Liner, Door   (Replaces: W10297318)			Immediately	$ 298.36
5	WPW10300487		Glass, Inner   (Replaces: W10300487)				$ 267.26
6	WPW10618239		Handle, Door (stainless)   (Replaces: W10254687)			Immediately	$ 171.80
7	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
8	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
9	W10294853		Bracket, Glass Liner			Immediately	$ 213.34
10	WPW10440013		Hinge, Door (active)   (Replaces: W10440013)			Immediately	$ 57.42
11	WPW10410341		Standoff, Handle (black)   (Replaces: W10410341)				$ 72.68
12	W11116956		Rail, Door   (Replaces: W10294851)				$ 120.38
13	W11688565		Insulation, Door   (Replaces: W10772958)				$ 24.32
14	WPW10317886		Screw   (Replaces: W10317886)			Immediately	$ 7.38
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
