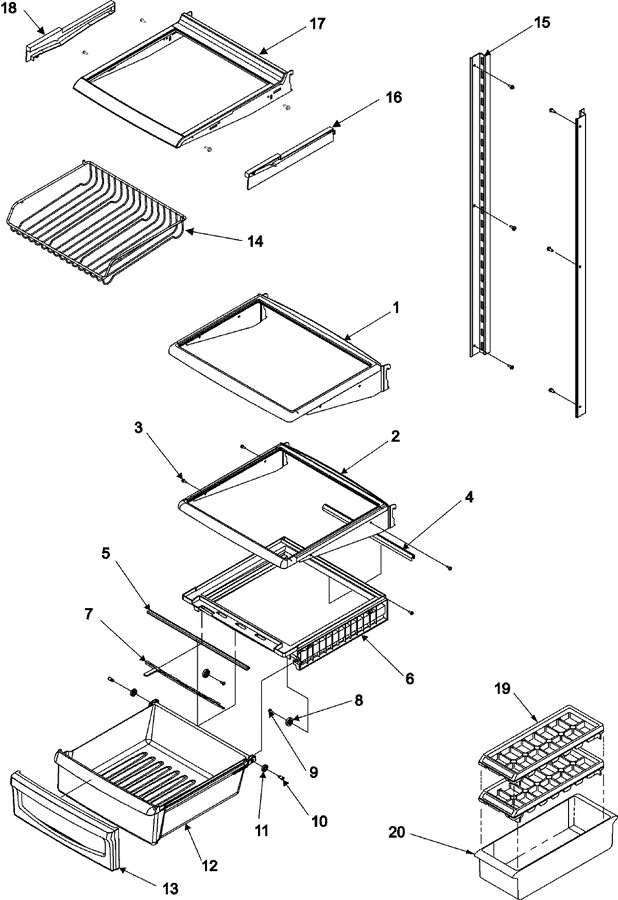

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004073		Shelf, Ref Sta 26	10	Appelez-nous	-
2	67004200		Shelf, Ref Sta	10	Appelez-nous	-
3	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
4	67004305		Seal, Crisper Frame (rear)	10	Appelez-nous	-
5	67004306		Seal, Front Frame	10	Appelez-nous	-
6	67004307		Frame, Crisper	10	Appelez-nous	-
7	67004298		Slide, Humidity Control (blue)	10	Appelez-nous	-
8	67004169		Roller, Crisper	10			$ 5.81
9	67006692		Screw, Shoulder   (Replaces: M0238105)	10			$ 10.79
10	67004174		Pin, Roller	10			$ 6.11
11	67004133		Roller, Pan	10	Appelez-nous	-
12	67003892		Pan, Adj Crisper	10	Appelez-nous	-
13	67004308		Front, Crisper Pan	10	Appelez-nous	-
14	12565901		Rack, Can	10	Appelez-nous	-
15	WP90767		Screw, Sm   (Replaces: M0211016)	10		Immediately	$ 8.25
15	67003840		Rail, L/r Lg Sxs	10	Appelez-nous	-
16	12579601		Glide, Can Rack (rt)	10	Appelez-nous	-
17	67004073		Shelf, Ref Sta 26	10	Appelez-nous	-
18	12579602		Glide, Can Rack (lt)	10	Appelez-nous	-
19	WP841180A		Tray, Ice   (Replaces: 67001205)	10		Immediately	$ 47.84
20	10423131		Bin, Utility	10			$ 31.13
