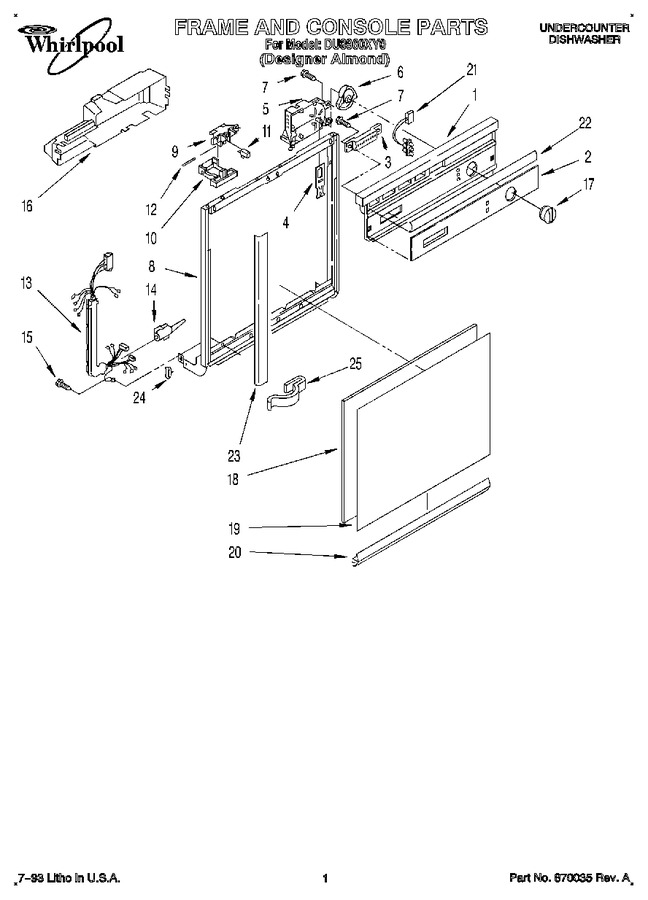

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3373013		Console (includes Item 2)		Appelez-nous	-
2	3373495		Insert, Console		Appelez-nous	-
3	3373493		Switch, 9-pushbutton		Appelez-nous	-
4	3368997		Follower, Cam				$ 35.20
5	3369203		Timer		Appelez-nous	-
6	3369415		Cam		Appelez-nous	-
7	WP304231		Screw, 8-18 X 1/2 (5)   (Replaces: 304231)			Immediately	$ 8.14
8	3373254		Door Frame		Appelez-nous	-
9	WP3380854		Bolt, Latch   (Replaces: 3368953)			Immediately	$ 101.73
10	WP3368954		Lever, Latch   (Replaces: 3373502)				$ 8.70
11	3369325		Switch, (2)		Appelez-nous	-
12	3368955		Pin, Switch (2)				$ 7.75
13	3372253		Harness And Protector		Appelez-nous	-
14	3368977		Elbow, Harness		Appelez-nous	-
15	WP488234		Screw, 8-32 X 1/4   (Replaces: 9412221)				$ 7.08
16	3369192		Cover, Timer		Appelez-nous	-
17	3373508		Knob, Timer		Appelez-nous	-
18	3373078		Spacer, Corrugated		Appelez-nous	-
19	WP3369769		Panel, Front (almond/black)   (Replaces: 3369516)				$ 59.42
20	3373505		Retainer, Panel		Appelez-nous	-
21	3370279		Light Assembly		Appelez-nous	-
22	3369324		Trim, Console		Appelez-nous	-
23	3369592		Trim (2)		Appelez-nous	-
24	WP3373234		Bearing Spring (2)   (Replaces: 3373234)				$ 11.01
25	WP98997		Clip, Harness   (Replaces: 98997)				$ 11.64
