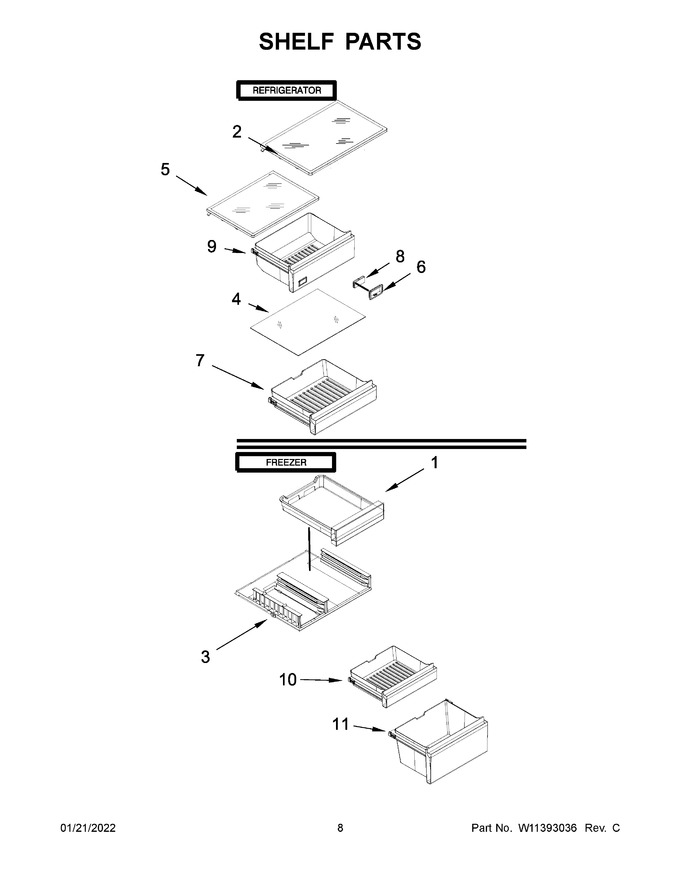

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11391360		Freezer, Drawer (left Hand)			Immediately	$ 57.89
2	W11409862		Shelf, Glass   (Replaces: W11391363)				$ 206.06
3	W11261262		Shelf, Multi Utility				$ 212.95
4	W11424101		Shelf, Glass   (Replaces: W11391361)				$ 206.35
5	W11394627		Glass, Meat Pan   (Replaces: W11248393)				$ 146.49
6	W10435530		Frame, Humidity Control				$ 14.66
7	W11403606		Assembly, Crisper				$ 116.88
8	W10431229		Control, Humidity				$ 14.50
9	W11391352		Pan, Meat				$ 116.88
10	W11391313		Drawer, Middle				$ 120.80
11	W11391351		Drawer, Bottom			Immediately	$ 185.04
1A	W11391358		Freezer, Drawer (right Hand)				$ 61.75
NI	NP		Cabinet (not A Servicable Part)		Appelez-nous	-
NI	W11416493		Complete Ice Maker Kit (includes Bin)				$ 142.88
NI	W11436901		Ice Cube Bin				$ 33.33
NI	W11436851		Ice Maker Kit (also Order Bin)			Immediately	$ 137.23
