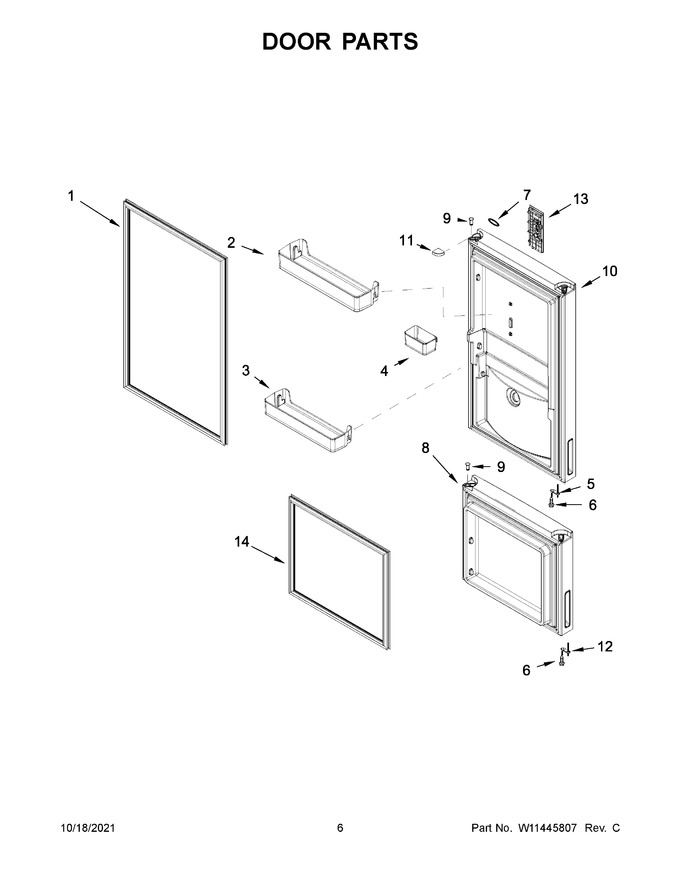

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11625087		Gasket, Refrigerator Door (black)   (Replaces: W11239027)				$ 215.56
2	W11783665		Bin, Bottle   (Replaces: W11291426)			Immediately	$ 56.72
3	W11247889		Door Bin, Refrigerator				$ 138.00
4	W11247503		Compartment, Half Bin				$ 139.50
5	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
6	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
7	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
8	W11487563		Door, Freezer (black)   (Replaces: W11308346)				$ 697.12
9	W11189115		Thimble, Top (black)   (Replaces: W10334042)				$ 11.44
10	W11408167		Door, Refrigerator (black)   (Replaces: W11309071)				$ 732.19
11	W11246847		Endcap Left Hand (black)		Appelez-nous	-
12	WPW10397055		Bracket, Door Stop   (Replaces: W10397055)			Immediately	$ 33.25
13	W11579353		Ui Assembly   (Replaces: W11448792)			Immediately	$ 290.68
14	W11625090		Gasket, Freezer Door (black)   (Replaces: W11239030)				$ 212.09
10A	W11396766		Door, Refrigerator (saturn)   (Replaces: W11315317)				$ 444.20
11A	W11246818		Endcap Left Hand (grey)				$ 43.24
11B	W11246854		Endcap Right Hand (black)				$ 41.80
11C	W11246849		Endcap Right Hand (grey)				$ 43.24
14A	W11250321		Gasket, Freezer Door (grey)				$ 33.71
1A	W11625612		Gasket, Refrigerator Door (grey)   (Replaces: W11250322)				$ 205.55
8A	W11396762		Door, Freezer (saturn)   (Replaces: W11315310)				$ 338.66
9A	W11766463		Thimble, Top (gray)   (Replaces: W11289190)				$ 11.11
