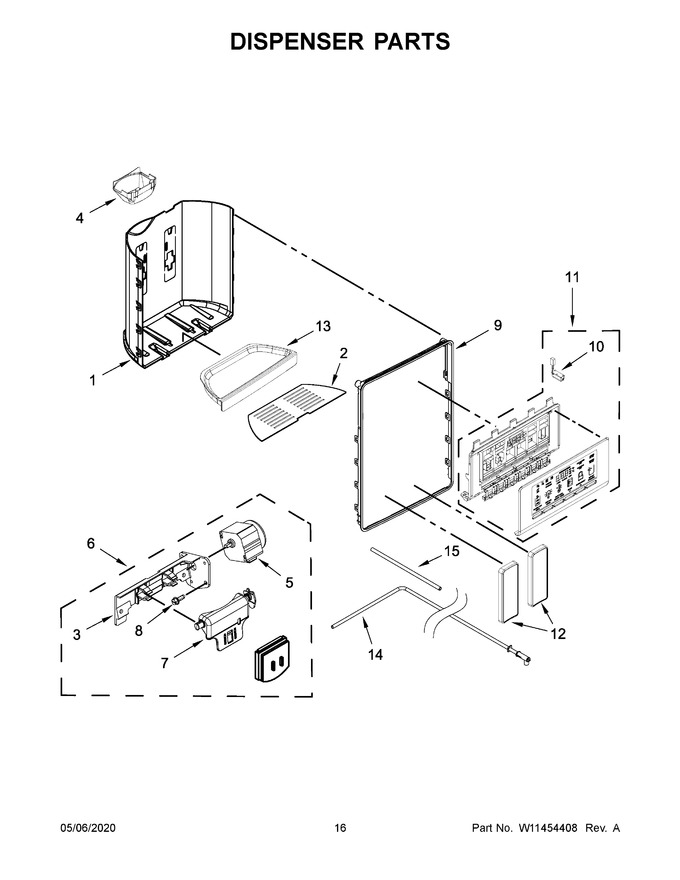

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10276226 | Wall, Dispenser False (satina) |
|
$ 127.04 | |||||
| 2 | WPW10276209 | Grate, Drip Tray (stainless) (Replaces: W10276209) |
|
$ 73.40 | |||||
| 3 | W10174827 | Bracket, Ice Door |
|
$ 68.78 | |||||
| 4 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 5 | WPW10205978 | Motor, Dispenser (Replaces: W10205978) |
|
$ 93.71 | |||||
| 6 | W11098702 | Assembly, Separator (Replaces: W10781994) |
|
$ 139.10 | |||||
| 7 | WPW10346124 | Support, Ice Door (Replaces: W10346124) |
|
$ 37.67 | |||||
| 8 | WP4449745 | Screw (Replaces: 4449745) |
|
$ 7.18 | |||||
| 9 | W11087882 | Ring, Trim (chromium Frost) |
|
$ 70.05 | |||||
| 10 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 76.01 | |||||
| 11 | W11474912 | Assembly, User Interface (includes Light Feature) (silver) (Replaces: W11365858) |
|
- | |||||
| 12 | W11624941 | Pad, Ice And Water (grey) (Replaces: W10370582) |
|
$ 63.74 | |||||
| 13 | W10276225 | Tray, Housing (satina) |
|
$ 66.65 | |||||
| 14 | WPW10386778 | Assembly, Water Fitting (Replaces: W10386778) |
|
Immediately | $ 119.47 | ||||
| 15 | W11620106 | Tube, Water (Replaces: W10691730) |
|
$ 106.06 |
