01 - Cover Sheet
02 - Cooktop Parts
03 - Chassis Parts
04 - Manifold Parts

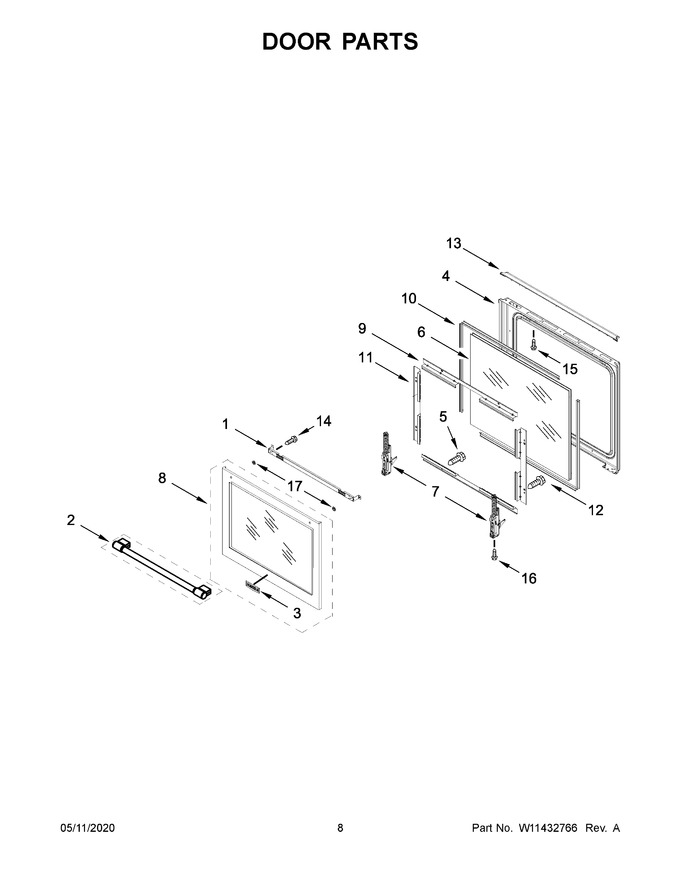

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Bracket, Glass Upper Handle |
|
Immediately | $ 35.93 | ||||
| 2 | W10912640 | Assembly, Handle (stainless) (Replaces: W10834521) |
|
$ 204.62 | |||||
| 3 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11339500 | Glass, Inner (Replaces: W11223202) |
|
$ 154.05 | |||||
| 7 | W11162113 | Hinge, Door (active) (Replaces: W10885519) |
|
Immediately | $ 111.53 | ||||
| 8 | W11028197 | Assembly, Door Skin (stainless) (Replaces: W10861554) |
|
$ 359.64 | |||||
| 9 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 10 | W11673273 | Glass Spacer (Replaces: W11379948) |
|
Immediately | $ 27.94 | ||||
| 11 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | W11251351 | Liner, Door Scoop (black) (Replaces: W10613791) |
|
Immediately | $ 125.70 | ||||
| 14 | WP8533988 | Screw (Replaces: W11091878) |
|
Immediately | $ 7.90 | ||||
| 15 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 16 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 17 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 13.33 |
