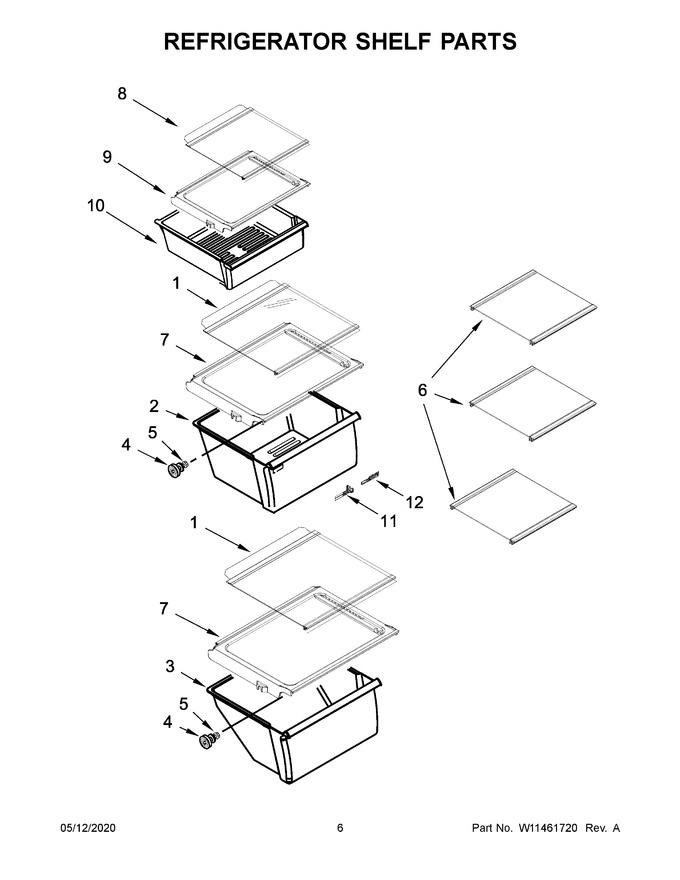

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11697465 | Assembly, Cover (Replaces: W11351248) |
|
$ 200.27 | |||||
| 2 | W11162443 | Pan, Crisper (Replaces: W11046494) |
|
Immediately | $ 148.52 | ||||
| 3 | W11162446 | Pan, Meat (Replaces: W11046495) |
|
$ 128.27 | |||||
| 4 | W11223328 | Assembly, Shelf Stud (Replaces: W10173126) |
|
Immediately | $ 13.29 | ||||
| 5 | WP3-24004-109 | Screw (Replaces: W10191954) |
|
$ 8.23 | |||||
| 6 | W11188040 | Assembly, Shelf (Replaces: W11135529) |
|
Immediately | $ 197.76 | ||||
| 7 | W11368751 | Holder, Pan (Replaces: W10904001) |
|
Immediately | $ 120.47 | ||||
| 8 | W11449889 | Module, Led (Replaces: W11351247) |
|
Immediately | $ 121.98 | ||||
| 9 | W11371713 | Holder, Snack Pan (Replaces: W10912335) |
|
Immediately | $ 184.97 | ||||
| 10 | W11162448 | Pan, Snack (Replaces: W11046493) |
|
$ 139.25 | |||||
| 11 | W11746089 | Slide, Humidity (Replaces: W10282883) |
|
$ 27.45 | |||||
| 12 | W11746089 | Housing, Humidity (Replaces: W10282880) |
|
$ 27.45 |
