View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

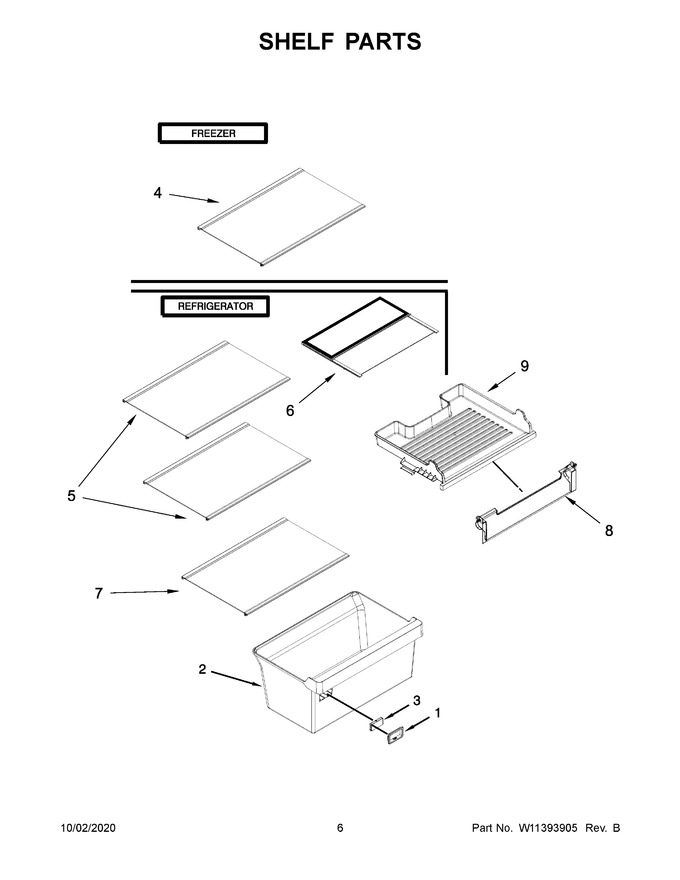

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10435530 | Frame, Humidity Control |
|
$ 14.66 | |||||
| 2 | W11434370 | Assembly, Crisper (Replaces: W11295870) |
|
$ 124.62 | |||||
| 2 | W11434370 | Assembly, Crisper (Replaces: W11391350) |
|
$ 124.62 | |||||
| 3 | W10431229 | Control, Humidity |
|
$ 14.50 | |||||
| 4 | W11424099 | Shelf, Glass (Replaces: W11391364) |
|
$ 206.06 | |||||
| 4 | W11369034 | Shelf, Glass (Replaces: W11248340) |
|
$ 198.26 | |||||
| 5 | W11369033 | Shelf, Glass (Replaces: W11248335) |
|
$ 205.59 | |||||
| 5 | W11409862 | Shelf, Glass (Replaces: W11391363) |
|
$ 206.06 | |||||
| 6 | W10873572 | Twister, Ice |
|
- | |||||
| 6 | W11424097 | Shelf, Tuck (Replaces: W11391367) |
|
$ 219.82 | |||||
| 7 | W11388921 | Shelf, Bottom Glass (Replaces: W11367385) |
|
- | |||||
| 7 | W11409863 | Shelf, Bottom Glass (Replaces: W11391354) |
|
$ 206.43 | |||||
| 8 | W11254716 | Cold, Flap |
|
Immediately | $ 88.15 | ||||
| 9 | W11368895 | Drawer, Pantry (Replaces: W11254718) |
|
Immediately | $ 131.61 | ||||
| 9 | W11368895 | Shelf, Tuck (Replaces: W11391359) |
|
Immediately | $ 131.61 | ||||
| 10 | W10827381 | Tray, Ice |
|
- | |||||
| 11 | W10432656 | Lid, Ice |
|
- |
