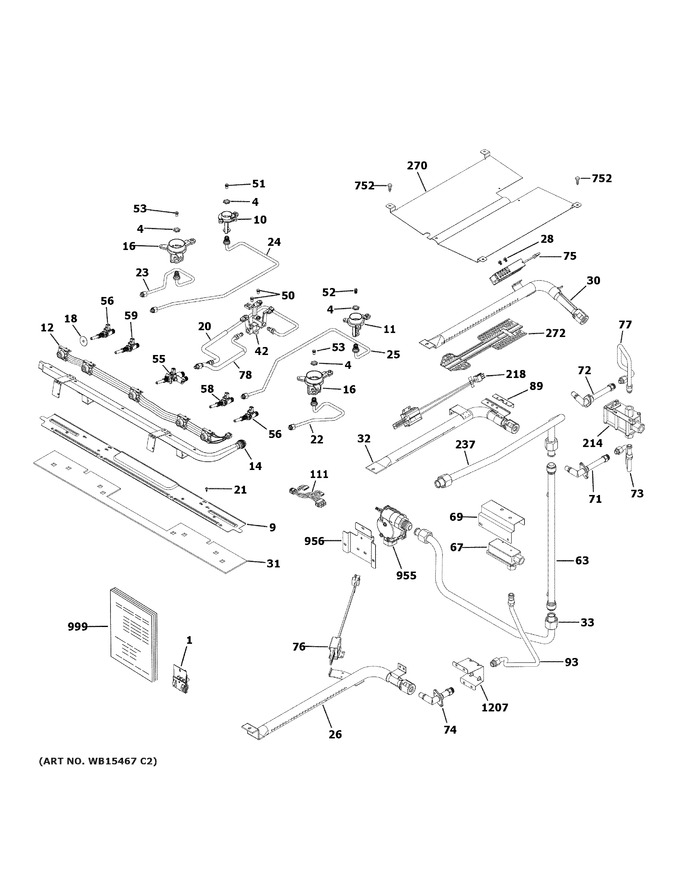

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB49X26120		Kit Cooktop Bumper Asm		Appelez-nous	-
1	WB49X26121		Kit Butane Conversion Asm		Appelez-nous	-
1	WB49X25441		Ng Kit High Altitude Asm		Appelez-nous	-
1	WB49X26122		Kit Nat Conversion Asm		Appelez-nous	-
1	WB49X25125		Kit Lp Conversion Asm		Appelez-nous	-
1	WB49X25442		Lp Kit High Altitude Asm		Appelez-nous	-
4	WS01A01130		Economic Nut   (Replaces: WB01K10037)			Immediately	$ 14.65
9	WB02K10272		Manifold Support		Appelez-nous	-
10	WB02X24728		Injet, Small V2		Appelez-nous	-
11	WB02X24727		Injet, Medium V2		Appelez-nous	-
12	WB18X27598		Harness Switch		Appelez-nous	-
14	WB28X24994		Manifold Pipe		Appelez-nous	-
16	WB02X24725		Injet, Xl V2		Appelez-nous	-
18	WB2K24		Cover Valve		Appelez-nous	-
20	WB28X25647		Dual Oval Orifice Holder		Appelez-nous	-
21	WB01K10067		Scr 8 Hd 1/4 - 20		Appelez-nous	-
22	WB28X24858		Orifice Holder		Appelez-nous	-
23	WB28X24761		Orifice Holder Rf		Appelez-nous	-
24	WB28X24763		Orifice Holder		Appelez-nous	-
25	WB28X24850		Orifice Holder		Appelez-nous	-
26	WB16X20606		Burner Bake		Appelez-nous	-
28	WB1K50		Screw Mtg Igniter		Appelez-nous	-
30	WB16K10072		Burner Broil		Appelez-nous	-
31	WB35X24985		Insulation Burner Box		Appelez-nous	-
32	WB16K10074		Burner Bake		Appelez-nous	-
33	WB28X24405		Tube Regulator		Appelez-nous	-
42	WB16X24983		Injet, Dual Oval		Appelez-nous	-
50	WB28K10107		Orifice Spud Lp 84mm		Appelez-nous	-
51	WS01F01338		Orifice Spud Lp   (Replaces: WB28K10834)			Immediately	$ 3.57
52	WS01F01389		Orifice-lp 89mm   (Replaces: WB28K10023)				$ 3.57
53	WB28X24768		Orifice Spud		Appelez-nous	-
55	WB21X25002		Valve Burner 270		Appelez-nous	-
56	WB21X20612		Valve Burner 270		Appelez-nous	-
58	WS01F06059		Valve Burner 270   (Replaces: WB21X20470)			Immediately	$ 20.28
59	WB21X25979		Valve Burner 270		Appelez-nous	-
63	WB28X24933		Multitube Supply		Appelez-nous	-
67	WB21X20475		Safety Valve Single		Appelez-nous	-
69	WB02K10325		Support Valve Single		Appelez-nous	-
71	WB28X20619		Elbow 90 Asm		Appelez-nous	-
72	WB28X20787		Elbow 90 Asm		Appelez-nous	-
73	WB28X20758		Tube Upper Bake Supply		Appelez-nous	-
74	WB28X20451		Elbow 90 Asm		Appelez-nous	-
75	WB13X24925		Igniter Glowbar		Appelez-nous	-
76	WB13X25633		Igniter Glowbar		Appelez-nous	-
77	WB28X20468		Tube Valve Safety		Appelez-nous	-
78	WB28X25648		Dual Oval Orifice Holder		Appelez-nous	-
89	WB02K10326		L Support		Appelez-nous	-
93	WB28X20757		Tube Lower Bake Supply		Appelez-nous	-
111	WB18X25123		Electrodes & H.v. Harness Asm		Appelez-nous	-
214	WB21X20474		Safety Valve Dual		Appelez-nous	-
218	WB13X24924		Igniter Glowbar		Appelez-nous	-
237	WB28X24937		Tube Manifold Supply		Appelez-nous	-
270	WB63X25991		Deflector		Appelez-nous	-
272	WB34X20303		Shield Broil		Appelez-nous	-
752	WZ04X0345		Screw 8-18x5/8 Hxw		Appelez-nous	-
955	WB21X20795		Pressure Regulator		Appelez-nous	-
956	WB02X21705		Support Regulator		Appelez-nous	-
999	31-11004		Pm Install Instructions		Appelez-nous	-
999	31-10996		Lp Conversion Inst		Appelez-nous	-
999	49-85226		Pm Gas Quick Guide		Appelez-nous	-
999	31-17183		Pm Mini Manual		Appelez-nous	-
1207	WB02X21734		Bracket Pipe		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
