01 - Cover Sheet


02 - Control Panel Parts


03 - Oven Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)

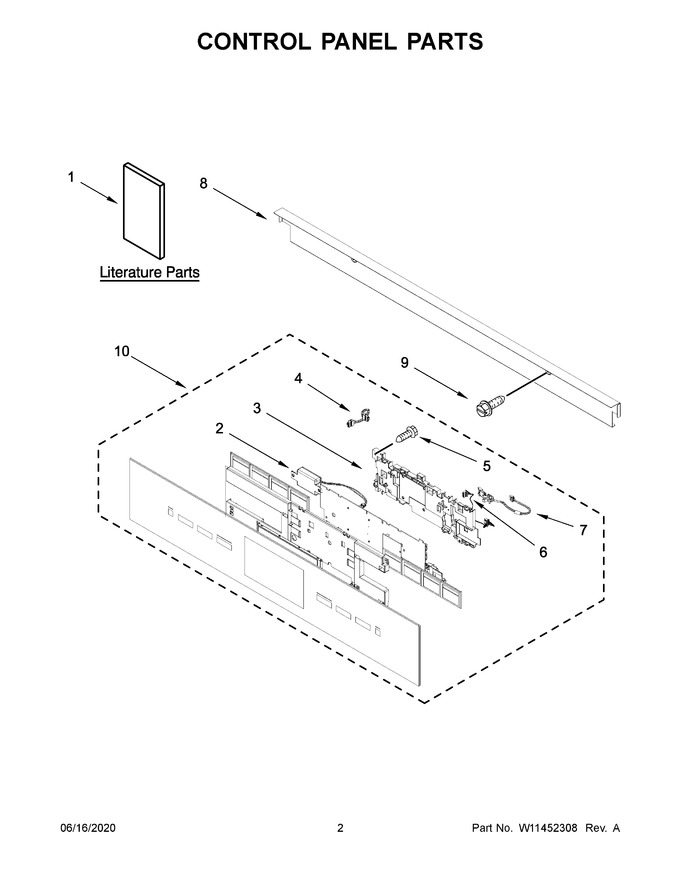

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11235626		Instructions, Installation		Appelez-nous	-
2	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
3	W10668510		Housing				$ 94.65
4	W10566973		Harness, Keypad (left To Center)				$ 73.97
5	W10489172		Screw				$ 10.78
6	W10524350		Harness, Keypad (right To Center)				$ 70.39
7	W10575307		Jumper Harness, Power Supply			Immediately	$ 156.46
8	W10444127		Cover, 30" Compliment				$ 117.66
9	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
10	W11460596		Assembly, Control Panel (black)   (Replaces: W11429294)				$ 1,419.06
1A	W11235346		Guide, Use And Care (microwave Oven)		Appelez-nous	-
1B	W11284428		Sheet, Tech		Appelez-nous	-
1C	W11235305		Diagram, Wiring		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10513362)				$ 10.95
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11449277		Harness, Interlock   (Replaces: W11356969)			Immediately	$ 140.42
NI	W11356954		Harness, Fan And Turntable				$ 133.88
NI	W11356968		Harness, Inverter				$ 137.93
NI	W11356986		Harness, Communication			Immediately	$ 101.57
NI	W11356977		Harness, Cable Tree Assembly				$ 76.56
NI	W11325605		Jumper Harness, Communication   (Replaces: W11356987)				$ 172.07
NI	4450800		Screw, Grounding				$ 12.12
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	W11356992		Conduit				$ 200.96
