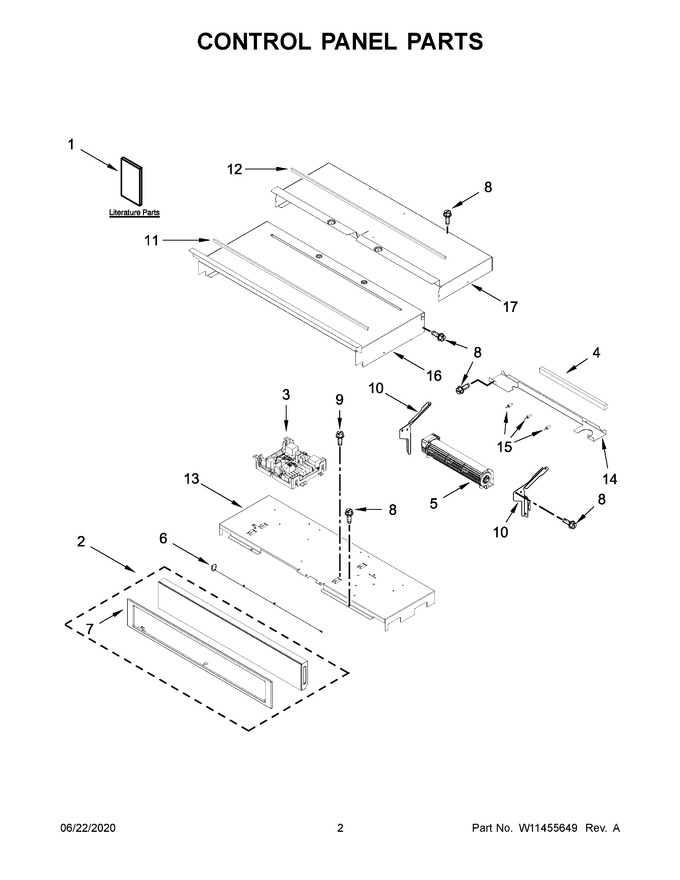

02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11220321		Guide, Use & Care		Appelez-nous	-
2	W11297707		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W11105011)				$ 751.08
3	W11261167		Appliance Manager, Copernicus   (Replaces: W11253187)			Immediately	$ 425.01
4	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.33
5	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 389.58
6	W11537624		Antenna   (Replaces: W11234541)				$ 95.45
7	W11026970		Skin, Control Panel (black)		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W11226314		Gasket, Rubber   (Replaces: W11162063)		Appelez-nous	-
12	W10728475		Gasket, Rubber				$ 34.32
13	W10864102		Tray, Electronic				$ 67.13
14	W10655465		Chassis, Back Divider		Appelez-nous	-
15	W10351295		Bumper				$ 19.91
16	W10318192		Chassis, Cover Top Front 30				$ 124.93
17	W10904156		Chassis, Cover Top Back 30		Appelez-nous	-
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11129956		Instructions, Installation		Appelez-nous	-
1B	W11097305		Guide, Internet Connectivity		Appelez-nous	-
1C	W11129945		Sheet, Tech		Appelez-nous	-
1D	W11129950		Diagram, Wiring		Appelez-nous	-
2A	W11297708		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W11105013)				$ 751.09
2B	W11297709		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11105007)				$ 750.39
3A	W11261169		Manager, Appliance (without Power Supply)   (Replaces: W11253188)				$ 418.48
7A	W11109371		Skin, Control Panel (white)   (Replaces: W11026969)		Appelez-nous	-
7B	W11113207		Skin, Control Panel (stainless)   (Replaces: W10899877)			Immediately	$ 216.67
NI	W10487999		Clip, Harness				$ 19.01
NI	W10655464		Bracket, Harness				$ 36.64
NI	4448664		Clamp, Conduit				$ 19.27
NI	W11233570		Harness, Console			Immediately	$ 211.19
NI	W11177679		Harness, Tod Jumper				$ 181.07
NI	W11699910		Harness, Eol   (Replaces: W10562910)				$ 29.66
NI	W11132989		Harness, Door Latch				$ 107.08
NI	W11225365		Harness, Signal				$ 161.33
NI	W11225364		Harness, Main				$ 322.30
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10431304)				$ 10.95
NI	4450800		Screw, Grounding				$ 12.12
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
