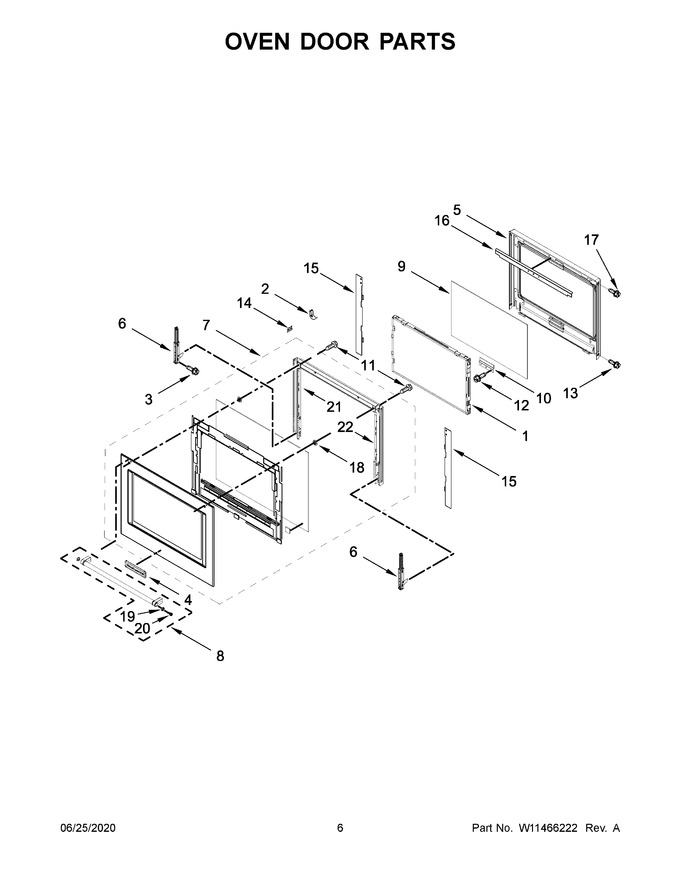

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11458357		Assembly, Window Pack   (Replaces: W11383650)				$ 303.34
2	W10812024		Spring, Door Glass Fixation   (Replaces: W10284285)				$ 149.18
3	WP3196183		Screw   (Replaces: 3196183)			Immediately	$ 7.36
4	W10909682		Badge   (Replaces: W10518672)			Immediately	$ 68.58
5	WPW10320793		Assembly, Liner   (Replaces: W10320793)				$ 303.61
6	W11642291		Hinge, Door   (Replaces: W10639067)				$ 74.92
7	W10774423		Assembly, Door (stainless)   (Replaces: W11318283)				$ 940.15
8	W11525064		Assembly, Handle (stainless)   (Replaces: W10640874)				$ 215.08
9	W11458359		Glass, Inner   (Replaces: W11368483)			Immediately	$ 287.60
10	W10853628		Bracket, Glass   (Replaces: W10284297)				$ 147.47
11	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
13	W10828565		Screw (black)   (Replaces: 7101P635-60)				$ 7.07
14	W11025615		Clip, Spring Metal   (Replaces: W10653954)			Immediately	$ 158.53
15	W10687815		Extension, Side Rail (left)				$ 64.51
16	W10669415		Shield, Door Liner				$ 62.60
17	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 6.80
18	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
19	W10846207		Medallion, Handle   (Replaces: W10551026)			Immediately	$ 20.83
20	W10920281		Screw   (Replaces: W10656499)			Immediately	$ 8.06
21	W11355410		Rail, Door Side (left)		Appelez-nous	-
22	W11355411		Rail, Door Side (right)		Appelez-nous	-
15A	W10687814		Extension, Side Rail (right)				$ 64.51
