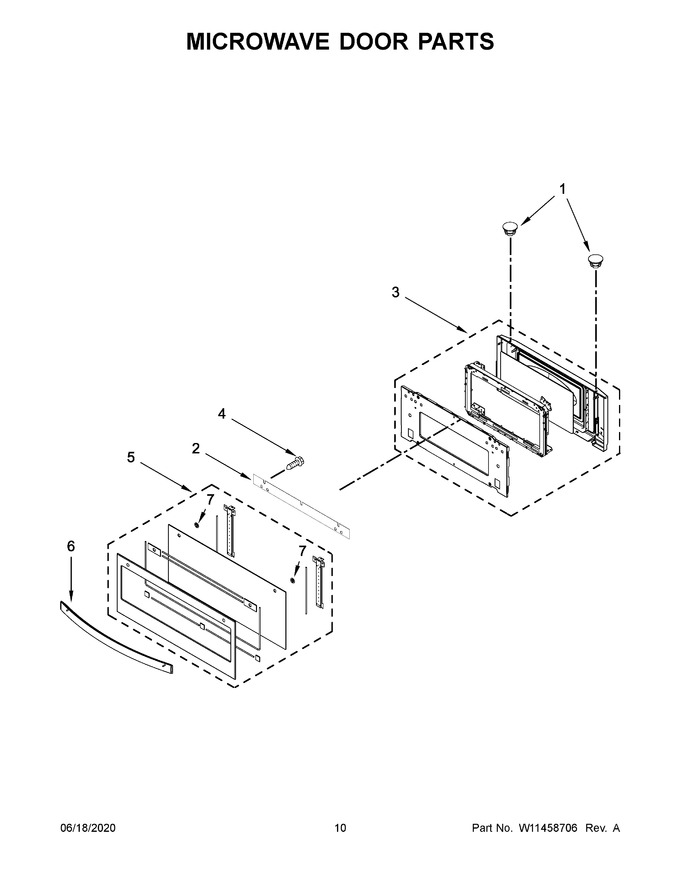

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 11.11
2	W10359769		Foam, Door Handle				$ 13.28
3	W11684570		Assembly, Inner Door   (Replaces: W10687342)			Immediately	$ 534.37
4	W10831019		Screw   (Replaces: W10480830)			Immediately	$ 7.44
5	W11110513		Assembly, Outer Door (black)   (Replaces: W10866274)				$ 430.36
6	W11110491		Handle, Door (black)   (Replaces: W11022638)				$ 170.02
7	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
5A	W11110514		Assembly, Outer Door (white)   (Replaces: W10866275)		Appelez-nous	-
5B	W11110515		Assembly, Outer Door (stainless)   (Replaces: W10866273)				$ 380.69
6A	W11110492		Handle, Door (white)   (Replaces: W11022639)				$ 170.02
6B	W11110499		Handle, Door (stainless)   (Replaces: W10875206)			Immediately	$ 169.38
