01 - Cover Sheet

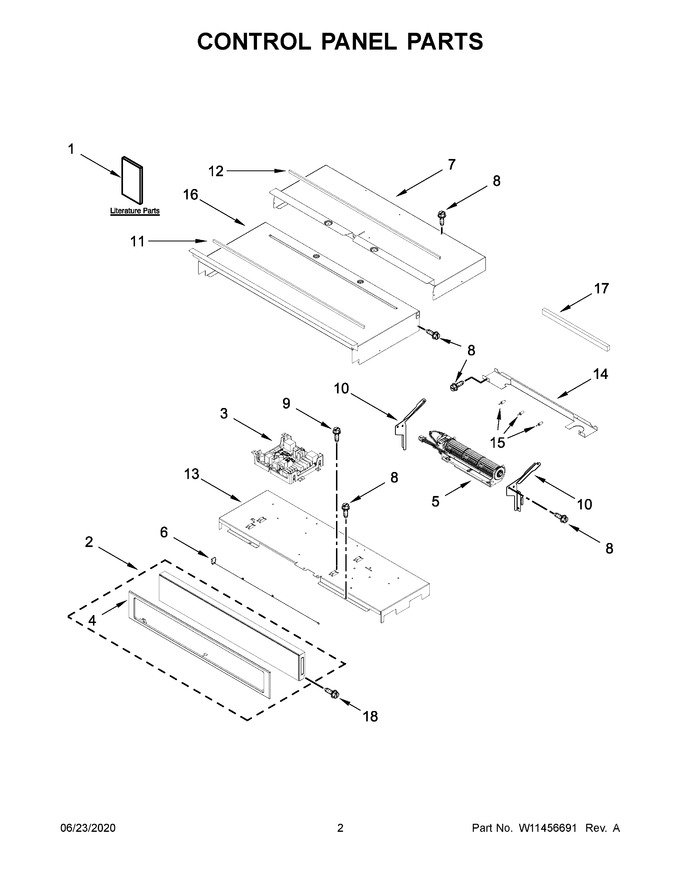

02 - Control Panel Parts
03 - Oven Parts
04 - Upper Oven Door Parts
05 - Lower Oven Door Parts
06 - Internal Oven Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11220323 | Guide, Use & Care |
|
- | |||||
| 2 | W11428578 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11424802) |
|
$ 967.47 | |||||
| 3 | W11261165 | Appliance Manager, Copernicus (with Power Supply) (Replaces: W11253186) |
|
Immediately | $ 444.58 | ||||
| 4 | W11113207 | Skin, Control Panel (stainless) (Replaces: W10899877) |
|
Immediately | $ 216.67 | ||||
| 5 | W11248652 | Blower (Replaces: W11200129) |
|
Immediately | $ 389.58 | ||||
| 6 | W11537624 | Antenna (Replaces: W11234541) |
|
$ 95.45 | |||||
| 7 | W10904156 | Chassis, Cover Top Back 30 |
|
- | |||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.57 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W11226314 | Gasket, Rubber (Replaces: W11162063) |
|
- | |||||
| 12 | W10728475 | Gasket, Rubber |
|
$ 34.32 | |||||
| 13 | W10864102 | Tray, Electronic |
|
$ 67.13 | |||||
| 14 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 15 | W10351295 | Bumper |
|
$ 19.91 | |||||
| 16 | W10318192 | Chassis, Cover Top Front 30 |
|
$ 124.93 | |||||
| 17 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.33 | ||||
| 18 | WP9740849 | Screw (Replaces: 9740849) |
|
$ 6.57 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W11129956 | Instructions, Installation |
|
- | |||||
| 1B | W11097305 | Guide, Internet Connectivity |
|
- | |||||
| 1C | W11046178 | Sheet, Tech |
|
- | |||||
| 1D | W11046184 | Diagram, Wiring |
|
- | |||||
| 2A | W11428579 | Assembly, Control Panel (includes Overlay) (black Stainless) (Replaces: W11424803) |
|
$ 823.31 | |||||
| 3A | W11261164 | Appliance Manager, Copernicus (without Power Supply) (Replaces: W11253182) |
|
$ 418.48 | |||||
| 4A | W11109373 | Skin, Control Panel (black Stainless) (Replaces: W10893985) |
|
$ 221.26 | |||||
| NI | WPW10339879 | Tie, Cable (Replaces: 4454842) |
|
$ 7.47 | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 19.27 | |||||
| NI | W11225371 | Harness, Signal |
|
$ 212.42 | |||||
| NI | W11233570 | Harness, Console |
|
Immediately | $ 211.19 | ||||
| NI | W11177679 | Harness, Tod Jumper |
|
$ 181.07 | |||||
| NI | W11699910 | Harness, Eol (Replaces: W10562910) |
|
$ 29.66 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 107.08 | |||||
| NI | W11225370 | Harness, Main |
|
$ 367.99 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10760039 | Bag, Hardware (Replaces: W10431304) |
|
$ 10.95 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.12 | |||||
| NI | W10487999 | Clip, Harness |
|
$ 19.01 | |||||
| NI | W10655464 | Bracket, Harness |
|
$ 36.64 |
