01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts

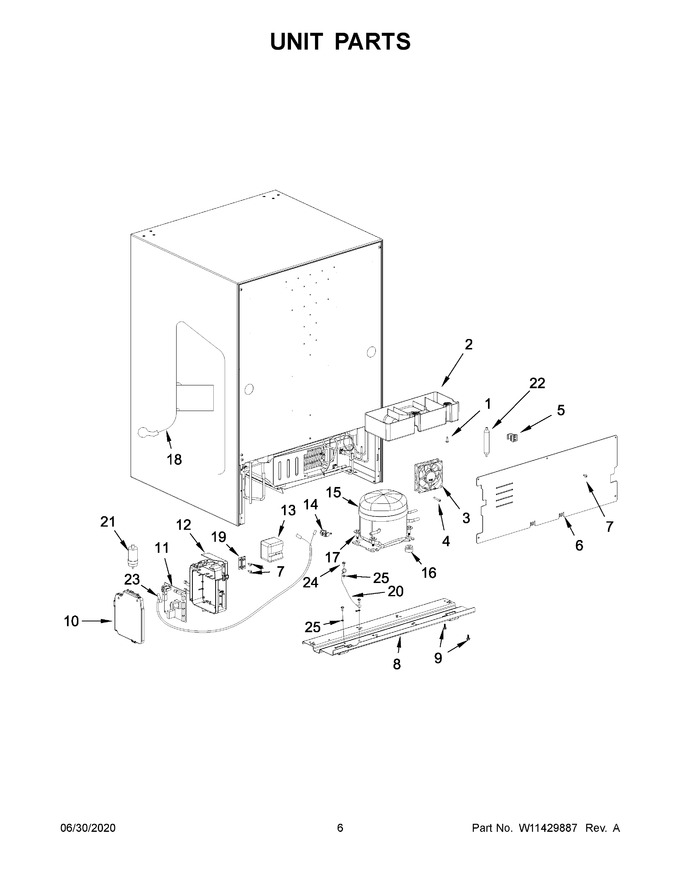

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11375763		Screw		Appelez-nous	-
2	W11264698		Pan, Drain		Appelez-nous	-
3	W11266081		Fan Motor   (Replaces: W11313136)				$ 194.89
4	W11371341		Screw		Appelez-nous	-
5	W11266075		Clamp   (Replaces: W11265569)		Appelez-nous	-
6	W11264703		Cover, Rear   (Replaces: W11313160)		Appelez-nous	-
7	W11371097		Screw		Appelez-nous	-
8	W11476534		Plate, Base				$ 109.96
9	W11371100		Screw		Appelez-nous	-
10	W11313206		Cover, Pcb				$ 73.67
11	W11372322		Control, Electronic   (Replaces: W11369453)				$ 398.22
12	W11313209		Pcb Box		Appelez-nous	-
13	W10772885		Cover, Relay		Appelez-nous	-
14	W10780361		Overload Relay				$ 151.64
15	W11765283		Compressor   (Replaces: W10780362)				$ 826.75
16	WP4344779		Grommet, Compressor   (Replaces: 4344779)				$ 7.62
17	W10772873		Bolt, Compressor   (Replaces: 4344780)		Appelez-nous	-
18	W11265410		Cord, Power   (Replaces: W11313212)				$ 153.77
19	W10270517		Clamp, Cord				$ 71.56
20	W11265588		Wire		Appelez-nous	-
21	W10772895		Running Capacitor				$ 122.29
22	W10163273		Drier				$ 93.07
23	W11263876		Harness, Wire		Appelez-nous	-
24	4344797		Screw		Appelez-nous	-
25	W10322070		Washer		Appelez-nous	-
NI	N/P		Refrigerant Charge 4.5 Oz. (r-134a)		Appelez-nous	-
