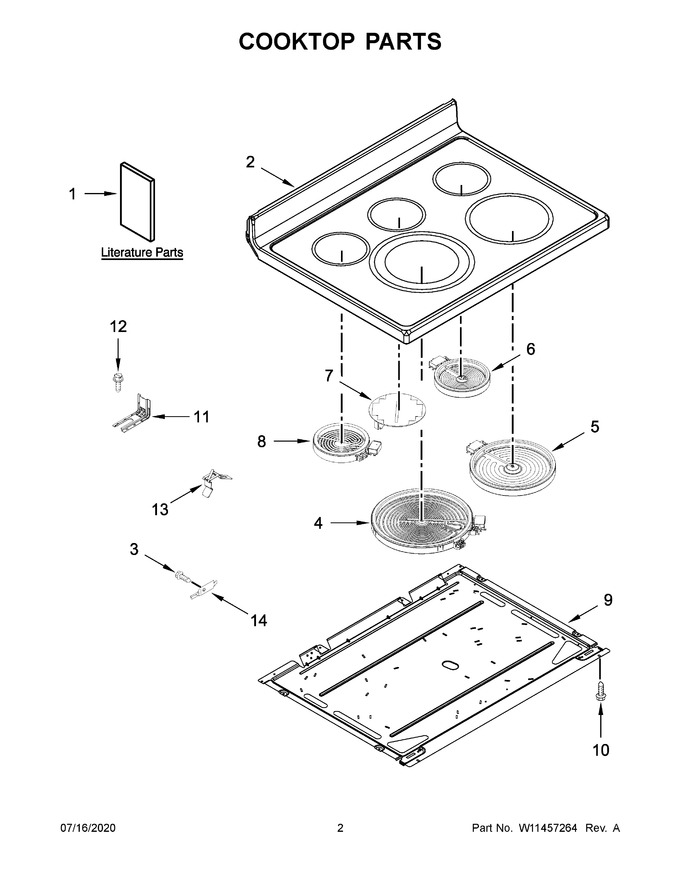

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10694024		Installation Instructions		Appelez-nous	-
2	W10804319		Cooktop (stainless)   (Replaces: W10697352)			Immediately	$ 838.86
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
4	W10823727		Element (3000w) (left Front)   (Replaces: W10711900)			Immediately	$ 308.37
5	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 132.01
6	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 203.06
7	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 119.66
8	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 151.61
9	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
11	W11839019		Bracket, Anti-tip   (Replaces: W11379945)			Immediately	$ 25.69
12	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
13	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
14	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.86
1A	W11321344		Use And Care Guide		Appelez-nous	-
1B	W11321585		Wiring Diagram		Appelez-nous	-
1C	W10400064		Quick Start Guide		Appelez-nous	-
1D	W10400065		Quick Start Guide (french)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11134592		Harness, Warm Zone				$ 105.53
NI	W11188425		Harness, Cooktop (left)				$ 177.07
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 192.83
NI	W11212183		Harness, Sensor				$ 212.08
NI	W11328422		Main Harness				$ 195.88
