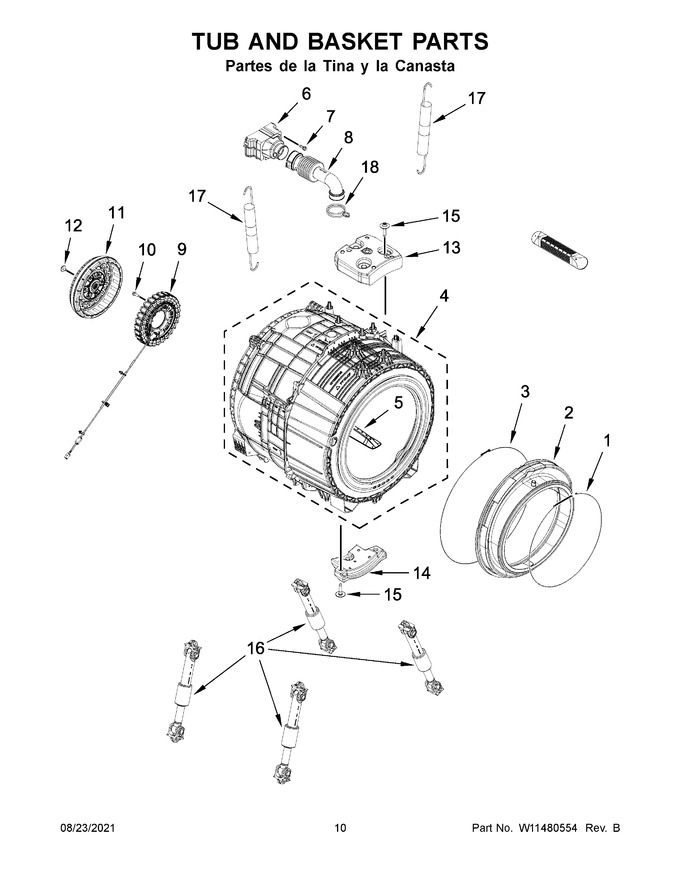

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11266654 | Retainer, Front Panel To Bellow (Replaces: W10818945) |
|
Immediately | $ 24.25 | ||||
| 2 | W11314648 | Bellow (Replaces: W10897390) |
|
Immediately | $ 247.18 | ||||
| 3 | W11314649 | Retainer, Bellow To Tub (Replaces: W11048199) |
|
Immediately | $ 21.78 | ||||
| 4 | W11460604 | Assembly, Tub And Drum (Replaces: W10921994) |
|
$ 923.21 | |||||
| 5 | W11460395 | Baffle, Drum (Replaces: W11198668) |
|
Immediately | $ 101.28 | ||||
| 6 | W11316248 | Enclosure, Vent (Replaces: W10919157) |
|
Immediately | $ 176.76 | ||||
| 7 | W11230114 | Screw (Replaces: 8540513) |
|
$ 12.55 | |||||
| 8 | W11316247 | Hose, Ventilation (Replaces: W11131396) |
|
Immediately | $ 32.06 | ||||
| 9 | W11354541 | Stator, Motor (Replaces: W11261207) |
|
Immediately | $ 392.36 | ||||
| 10 | W11314661 | Screw, Stator (Replaces: W11035597) |
|
$ 13.27 | |||||
| 11 | W11314361 | Rotor, Motor (Replaces: W10916241) |
|
Immediately | $ 180.16 | ||||
| 12 | W11314657 | Screw, Rotor (Replaces: W10797525) |
|
$ 13.77 | |||||
| 13 | W11314650 | Counterweight, Top (Replaces: W11209370) |
|
Immediately | $ 146.90 | ||||
| 14 | W11607191 | Counterweight, Bottom (Replaces: W11279416) |
|
$ 114.74 | |||||
| 15 | W11314651 | Screw, Counterweight (Replaces: W11235083) |
|
Immediately | $ 13.36 | ||||
| 16 | W11316766 | Damper Assembly (Replaces: W11094464) |
|
Immediately | $ 144.85 | ||||
| 17 | W11771999 | Spring, Suspension (Replaces: W10896675) |
|
Immediately | $ 15.16 | ||||
| 18 | WP371502 | Clamp, Hose (Replaces: 371507) |
|
$ 11.08 |
