01 - Cover Sheet

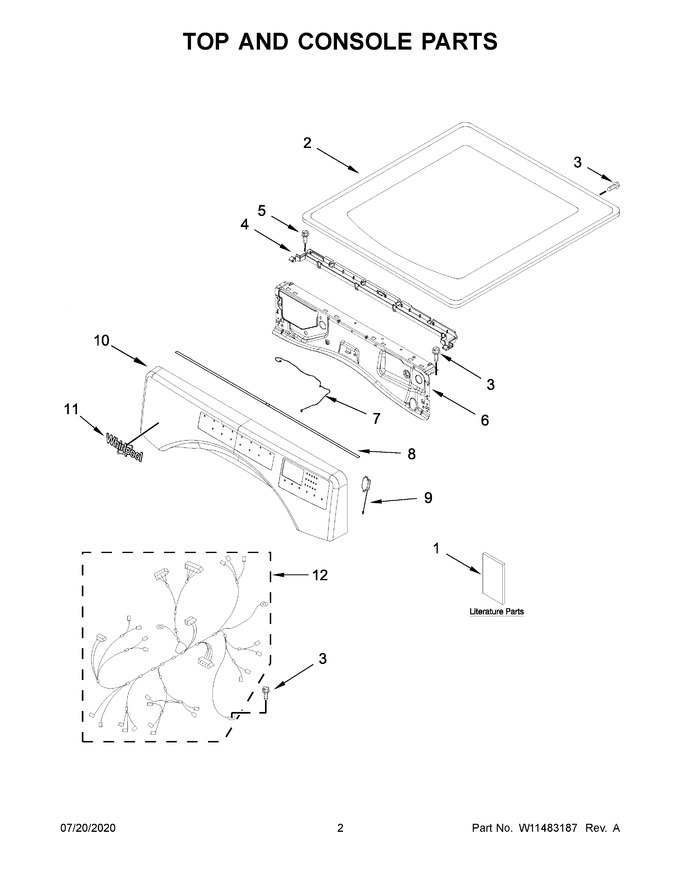

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11361424 | Owners Manual |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 21.37 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W11459337 | Harness, User Interface (Replaces: W11160620) |
|
$ 30.50 | |||||
| 8 | W11231800 | Seal |
|
- | |||||
| 9 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 72.84 | |||||
| 10 | W11378949 | Console Assembly (white) (Replaces: W11314470) |
|
Immediately | $ 346.19 | ||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 78.53 | ||||
| 12 | W11157863 | Harness, Main Wiring |
|
$ 163.69 | |||||
| 1A | W11457204 | Wiring Diagram |
|
- | |||||
| 1B | W11355749 | Quick Start Guide |
|
- |
