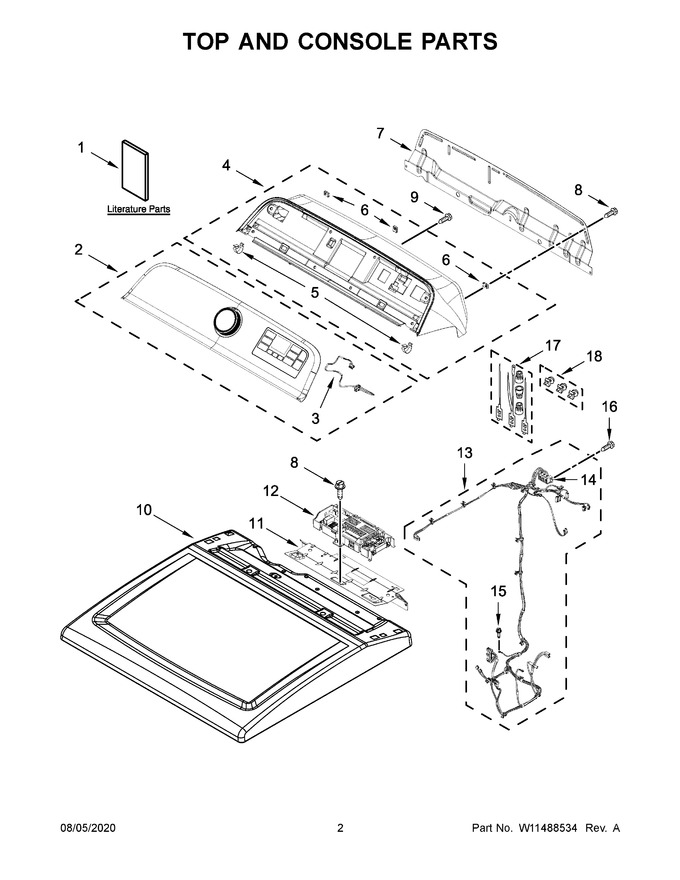

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Dryer Heating Parts-electric
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11268643 | Installation Instructions |
|
- | |||||
| 2 | W11419059 | Assembly, Console Fascia (complete) (Replaces: W11164034) |
|
$ 592.97 | |||||
| 3 | W11164312 | Harness, User Interface (hmi) |
|
$ 151.18 | |||||
| 4 | W11401366 | Console (chrome Shadow) (Replaces: W11178520) |
|
Immediately | $ 340.76 | ||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 7 | W11433112 | Panel, Rear Console (Replaces: W11259799) |
|
$ 59.47 | |||||
| 8 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 9 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 10 | W11641122 | Top (chrome Shadow) (Replaces: W10458665) |
|
$ 241.94 | |||||
| 11 | W11431865 | Bracket, Electronic Control (Replaces: W10896068) |
|
$ 51.62 | |||||
| 12 | W11441686 | Appliance Control Unit (acu) (Replaces: W11420135) |
|
$ 209.19 | |||||
| 13 | W11164042 | Harness, Main Wiring |
|
Immediately | $ 233.57 | ||||
| 14 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 15 | W11693756 | Screw (Replaces: 359625) |
|
Immediately | $ 13.28 | ||||
| 16 | WP308685 | Screw (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 17 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 18 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 1A | W11175222 | Tech Sheet |
|
- | |||||
| 1B | W11175247 | Quick Start Guide |
|
- |
