View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Upper Drawer Parts
05 - Lower Drawer Parts
06 - Unit Parts
07 - Icemaker Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

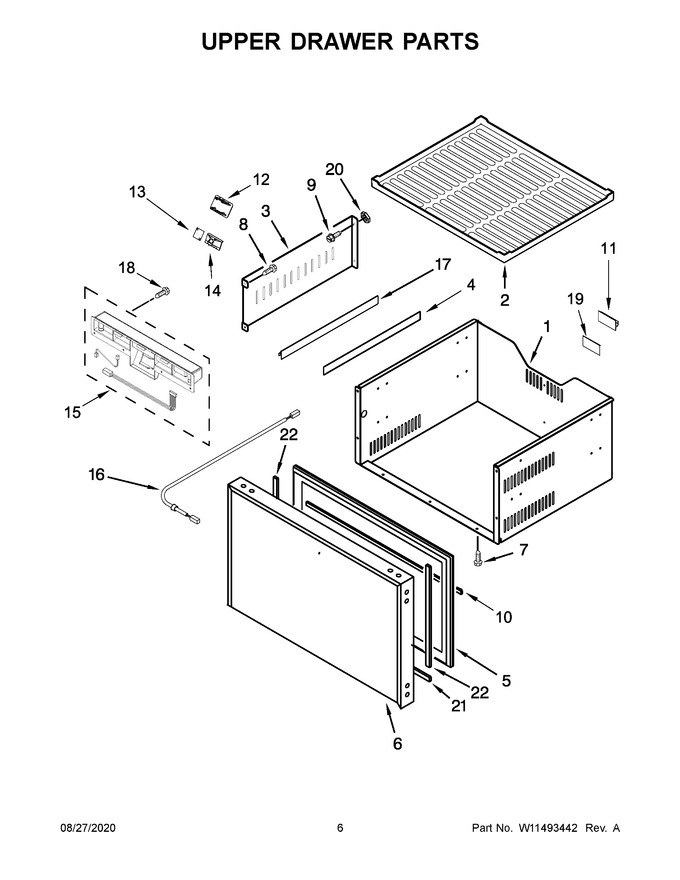

| 1 | W11466972 | Drawer Box Assembly, Upper |
|
- | |||||
| 2 | W10622004 | Mat, Upper Drawer |
|
$ 325.70 | |||||
| 3 | W11422834 | Drawer Partition |
|
- | |||||
| 4 | W11442514 | Wire Support Tape |
|
- | |||||
| 5 | WPW10622006 | Gasket (Replaces: W10622006) |
|
Immediately | $ 164.78 | ||||
| 6 | W11422740 | Top Foamed Door Assembly |
|
- | |||||
| 7 | W10319183 | Screw |
|
- | |||||
| 8 | W10204809 | Screw |
|
- | |||||
| 9 | W10204810 | Screw |
|
- | |||||
| 10 | W10772909 | Cold Air Seal |
|
- | |||||
| 11 | W10772901 | Support, Wire |
|
$ 17.60 | |||||
| 12 | W10204929 | Lamp Cover |
|
$ 80.26 | |||||
| 13 | W10204930 | Led Lamp |
|
$ 312.84 | |||||
| 14 | W10204931 | Lamp Holder |
|
$ 71.69 | |||||
| 15 | W11493061 | Assembly, Control Display |
|
$ 540.39 | |||||
| 16 | W10789534 | Harness, Display To Indicator |
|
Immediately | $ 135.57 | ||||
| 17 | W10622013 | Support, Lead Wire |
|
$ 25.83 | |||||
| 18 | W10204808 | Screw |
|
- | |||||
| 19 | W10721447 | Wire Support Tape |
|
- | |||||
| 20 | W10204920 | Nut |
|
- | |||||
| 21 | W10204889 | Door Gasket, Long |
|
- | |||||
| 22 | W10204897 | Door Gasket, Short |
|
- | |||||
| NI | W10788702 | Overlay Installation Kit |
|
$ 96.93 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
