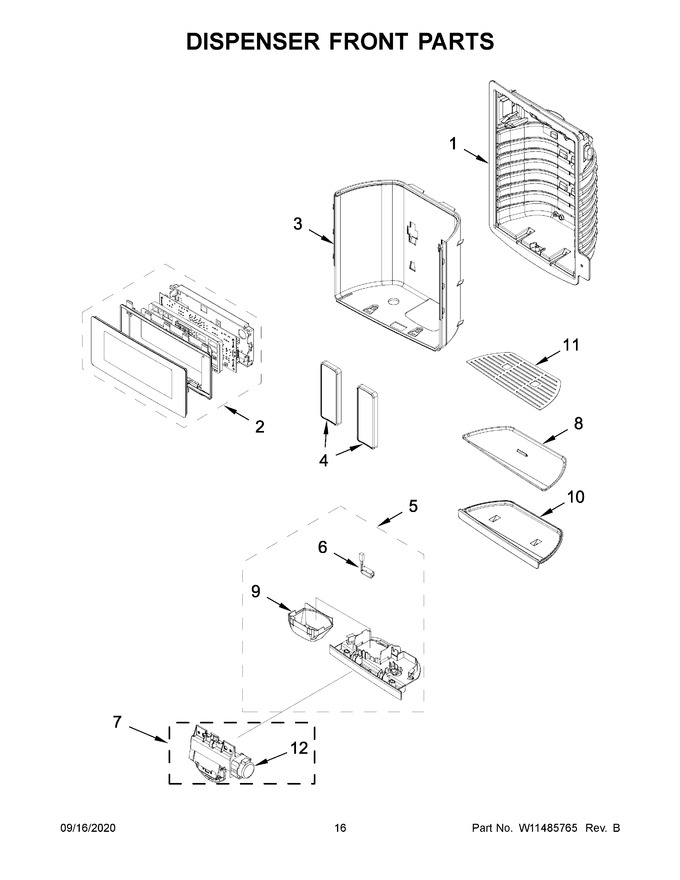

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Housing, Dispenser (not Serviced) |
|
- | |||||
| 2 | W11405309 | Assembly, User Interface (black) (Replaces: W11117273) |
|
$ 307.31 | |||||
| 3 | W10486344 | Wall, Dispenser False (black) |
|
$ 120.60 | |||||
| 4 | W11561037 | Assembly, Pad (black) (Replaces: W10317253) |
|
$ 74.64 | |||||
| 5 | W10836794 | Assembly, Separator (Replaces: W10394101) |
|
$ 173.42 | |||||
| 6 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 76.01 | |||||
| 7 | WPW10606117 | Assembly, Ice Door (Replaces: W10606117) |
|
$ 173.05 | |||||
| 8 | W10400889 | Insert, Drip Tray (black) |
|
$ 45.01 | |||||
| 9 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 10 | W10400884 | Tray, Dispenser (black) |
|
$ 62.24 | |||||
| 11 | WPW10542708 | Grate, Drip Tray (Replaces: W10542708) |
|
$ 71.59 | |||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 96.84 | ||||
| 10A | WPW10400887 | Tray, Dispenser (grey) (Replaces: W10400887) |
|
$ 66.23 | |||||
| 3A | WPW10486346 | Wall, Dispenser False (grey) (Replaces: W10486346) |
|
$ 138.80 | |||||
| 4A | WPW10346924 | Assembly, Pad (grey) (Replaces: W10346924) |
|
Immediately | $ 260.69 | ||||
| 8A | W10402269 | Insert, Drip Tray (grey) |
|
Immediately | $ 62.19 |
