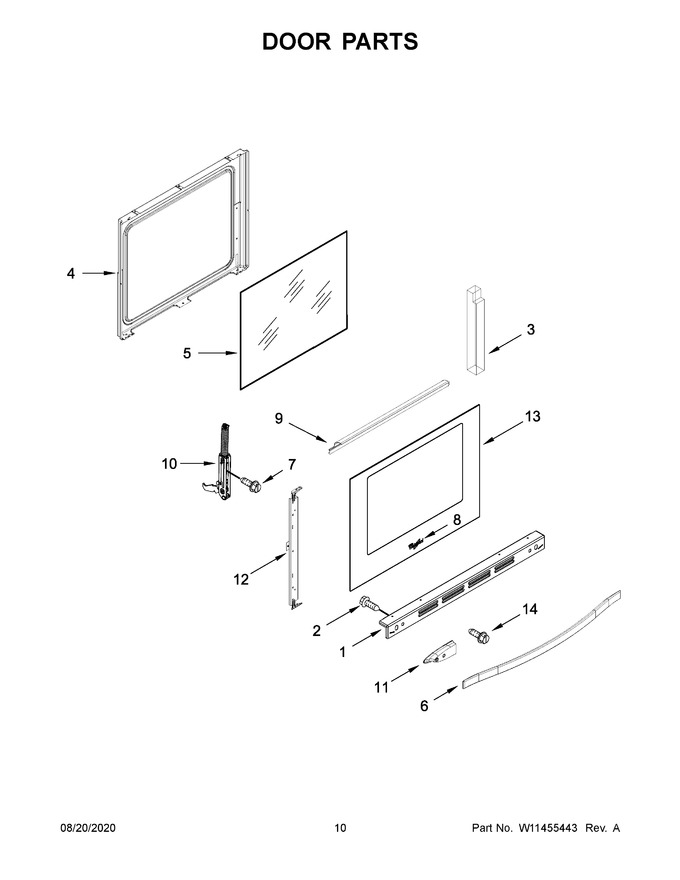

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11205076 | Trim, Vent (stainless) (Replaces: W10842333) |
|
$ 130.81 | |||||
| 2 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 3 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 24.32 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 5 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 6 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 171.80 | ||||
| 7 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 8 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 9 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 10 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 11 | WPW10410341 | Black (Replaces: W10410341) |
|
$ 72.68 | |||||
| 12 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 13 | W10903747 | Assembly, Outer Door Stainless (Replaces: W10871597) |
|
- | |||||
| 14 | W11396735 | Screw (Replaces: W10426267) |
|
$ 13.28 |
