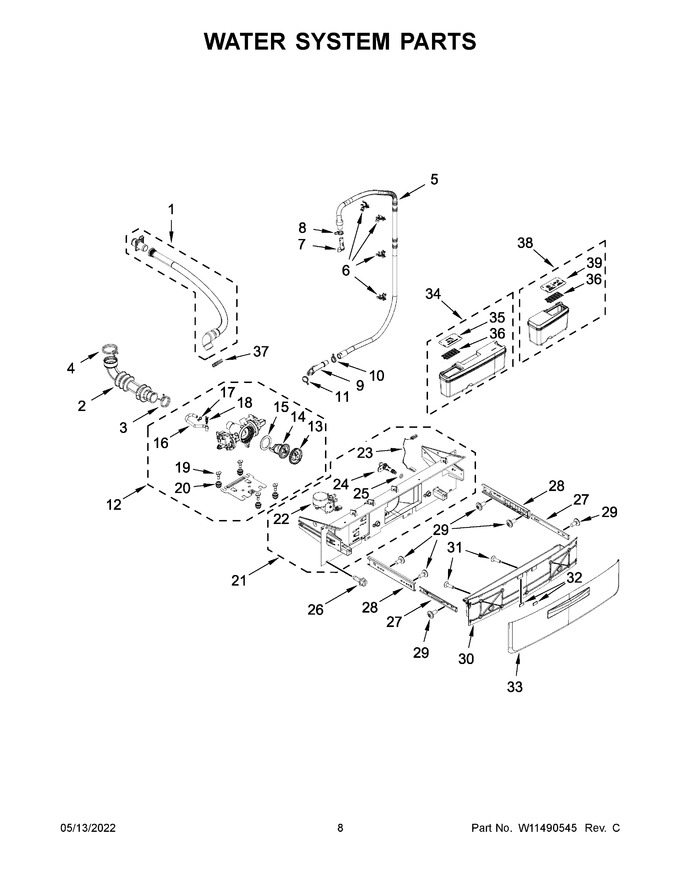

05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11549455 | Assembly, Drain Hose (Replaces: W11507443) |
|
Immediately | $ 32.67 | ||||
| 2 | W11316056 | Hose, Tub To Pump (Replaces: W10921959) |
|
Immediately | $ 32.12 | ||||
| 3 | WP616099 | Clamp, Hose (Replaces: 370448) |
|
Immediately | $ 7.72 | ||||
| 4 | W10273034 | Clamp, Vent Hose |
|
$ 10.10 | |||||
| 5 | W11318802 | Hose, Pump To Bellow (Replaces: W10921960) |
|
$ 31.91 | |||||
| 6 | W11316608 | Clip, Hose (Replaces: W11050231) |
|
- | |||||
| 7 | W11316251 | Nozzle, Water (Replaces: W10796538) |
|
$ 80.87 | |||||
| 8 | WP596669 | Clamp, Hose (Replaces: 371503) |
|
Immediately | $ 7.94 | ||||
| 9 | W11111701 | Connection, Dosing (double) |
|
- | |||||
| 10 | W11316607 | Clamp, Hose (Replaces: 8533888) |
|
Immediately | $ 20.90 | ||||
| 11 | WP596669 | Clamp, Hose (Replaces: 9724996) |
|
Immediately | $ 7.94 | ||||
| 12 | W11458345 | Assembly, Pump (Replaces: W11319789) |
|
Immediately | $ 292.84 | ||||
| 13 | W11316610 | Cap, Filter (Replaces: W10921834) |
|
$ 52.66 | |||||
| 14 | W11458347 | Filter, Pump (Replaces: W11319788) |
|
$ 8.75 | |||||
| 15 | W11316613 | Seal, Filter Cap (Replaces: W10921839) |
|
$ 20.95 | |||||
| 16 | W11316662 | Hose, Drain (pump) (Replaces: W10782741) |
|
Immediately | $ 30.39 | ||||
| 17 | W11316666 | Clamp, Hose (Replaces: W10834076) |
|
- | |||||
| 18 | W11316669 | Plug, Drain (pump) (Replaces: W10834077) |
|
$ 20.85 | |||||
| 19 | W11316664 | Grommet, Pin (pump) (Replaces: W11133160) |
|
$ 20.16 | |||||
| 20 | W11316663 | Grommet (pump) (Replaces: W11126910) |
|
$ 20.24 | |||||
| 21 | W11321065 | Bracket, Metering Support (Replaces: W11114815) |
|
Immediately | $ 298.41 | ||||
| 22 | W11318806 | Pump, Metering (Replaces: W10903621) |
|
Immediately | $ 301.19 | ||||
| 23 | W11195379 | Assembly, Detergent Level Sensor |
|
Immediately | $ 181.80 | ||||
| 24 | W11106544 | Docking Tube (Replaces: W11041134) |
|
Immediately | $ 94.91 | ||||
| 25 | W11628814 | O-ring, Docking Tube (Replaces: W11218383) |
|
Immediately | $ 22.34 | ||||
| 26 | W11568617 | Screw (Replaces: W10567155) |
|
$ 13.25 | |||||
| 27 | W11551370 | Rail, Inner (Replaces: W11204544) |
|
Immediately | $ 26.69 | ||||
| 28 | W11321012 | Rail, Outer (Replaces: W11204545) |
|
Immediately | $ 20.25 | ||||
| 29 | W11230114 | Screw (Replaces: 8540513) |
|
$ 12.55 | |||||
| 30 | W11318828 | Liner, Bulk Dispenser (white) (Replaces: W11222535) |
|
$ 186.53 | |||||
| 31 | W10850046 | Screw (Replaces: 9742177) |
|
Immediately | $ 6.80 | ||||
| 32 | W11320962 | Magnet, Bulk Dispenser Liner (Replaces: W11193487) |
|
$ 23.63 | |||||
| 33 | W11318826 | Fascia, Bulk Dispenser (white) (Replaces: W11174517) |
|
$ 97.88 | |||||
| 34 | W11318830 | Assembly, Bulk Dispenser Tank (2l) (Replaces: W11087952) |
|
Immediately | $ 75.67 | ||||
| 35 | W11318832 | Lid, Tank (Replaces: W11047515) |
|
$ 61.79 | |||||
| 36 | W11320963 | Level, Tank (Replaces: W11199898) |
|
- | |||||
| 37 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 7.67 | ||||
| 38 | W11678968 | Assembly, Bulk Dispenser Tank (1l) (Replaces: W11087953) |
|
$ 84.67 | |||||
| 39 | W11047807 | Lid, Tank |
|
$ 63.70 | |||||
| 30A | W11325565 | Liner, Bulk Dispenser (gray) (Replaces: W11087950) |
|
$ 350.15 | |||||
| 33A | W11174518 | Fascia, Bulk Dispenser (chrome Shadow) |
|
$ 192.70 | |||||
| 33B | W11328713 | Fascia, Bulk Dispenser (black Shadow) (Replaces: W11192164) |
|
$ 392.91 |
