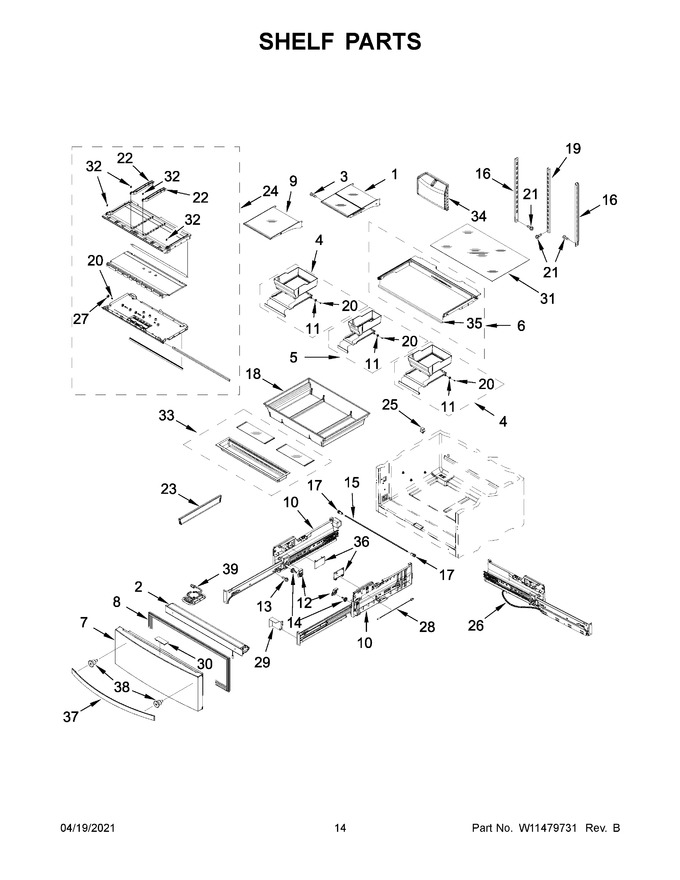

08 - Shelf Parts


09 - Dispenser Front Parts


10 - Icemaker And Ice Container Parts


11 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10709175		Assembly, Tuck Shelf   (Replaces: W10709175)				$ 294.98
2	W11483111		Assembly, Secondary Mullion   (Replaces: W11374494)		Appelez-nous	-
3	W10421495		Screw				$ 17.18
4	W10839369		Crisper, Medium   (Replaces: W10509272)				$ 179.28
5	W10509275		Crisper, Small				$ 144.14
6	W11127833		Assembly, Crisper Cover   (Replaces: W11037029)				$ 208.31
7	W11104496		Door, Pantry (includes Door Gasket) (black Stainless)   (Replaces: W11024162)				$ 896.88
8	W10622445		Gasket, Pantry (black)   (Replaces: W10545600)				$ 319.99
9	WPW10709163		Assembly, Shelf   (Replaces: W10709163)				$ 326.93
10	W11215629		Adapter, Pantry (left Hand)			Immediately	$ 174.26
11	W10788795		Roller   (Replaces: W10530295)				$ 18.54
12	W10284709		Cover, Gear (left Hand)				$ 66.50
13	12991702		Screw				$ 13.44
14	W10277360		Gear, Spur				$ 28.67
15	W10802341		Shaft, Rack		Appelez-nous	-
16	W11690684		Ladder, Side   (Replaces: W10372170)				$ 45.56
17	WPW10277361		Collar, Gear   (Replaces: W10277361)				$ 10.88
18	WPW10530656		Pan, Pantry   (Replaces: W10530656)				$ 216.79
19	WPW10248516		Ladder, Center   (Replaces: W10248516)				$ 32.30
20	67006692		Screw   (Replaces: 12991401)				$ 9.71
21	W10423560		Screw		Appelez-nous	-
22	W10530296		Guide, Crisper		Appelez-nous	-
23	W11763409		Divider, Large Pantry   (Replaces: W10772797)				$ 52.90
24	W10782690		Assembly, Floor (includes Heater)				$ 238.46
25	W11384469		Switch, Light   (Replaces: W10847853)			Immediately	$ 35.18
26	W11170612		Harness, Side Adapter   (Replaces: W10512203)			Immediately	$ 81.86
27	W10788795		Roller   (Replaces: W10530295)				$ 18.54
28	W11168403		Thermistor   (Replaces: W10549991)			Immediately	$ 113.95
29	W10518378		Cover, Connector		Appelez-nous	-
30	WPW10599145		Assembly, User Interface (black)   (Replaces: W10599145)				$ 279.23
31	W11038526		Glass, Crisper   (Replaces: W10893770)				$ 236.79
32	12702901		Pad, Glide		Appelez-nous	-
33	W10858273		Bin, Secondary Mullion   (Replaces: W10780178)				$ 227.88
34	W11462816		Assembly, Produce Preserver   (Replaces: W10826105)			Immediately	$ 15.44
35	W10530297		Support, Crisper Front				$ 145.11
36	W10518036		Cover, Side Adapter				$ 20.48
37	W11125509		Handle, Door (black Stainless)   (Replaces: W11101977)			Immediately	$ 171.40
38	W11449276		Screw   (Replaces: W11328753)			Immediately	$ 15.35
39	W11483116		Assembly, Led Light Module   (Replaces: W11228040)			Immediately	$ 19.63
10A	W11093718		Adapter, Pantry (right Hand)		Appelez-nous	-
12A	W10294414		Cover, Gear (right Hand)				$ 75.13
30A	WPW10503833		Assembly, User Interface (stainless)   (Replaces: W10503833)				$ 412.34
37A	W11045125		Handle, Door (stainless)   (Replaces: W11115761)			Immediately	$ 171.40
7A	W11435361		Door, Pantry (includes Door Gasket) (stainless)   (Replaces: W11419982)				$ 912.99
8A	W10622446		Gasket, Pantry (grey)   (Replaces: W10518365)				$ 319.87
