View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

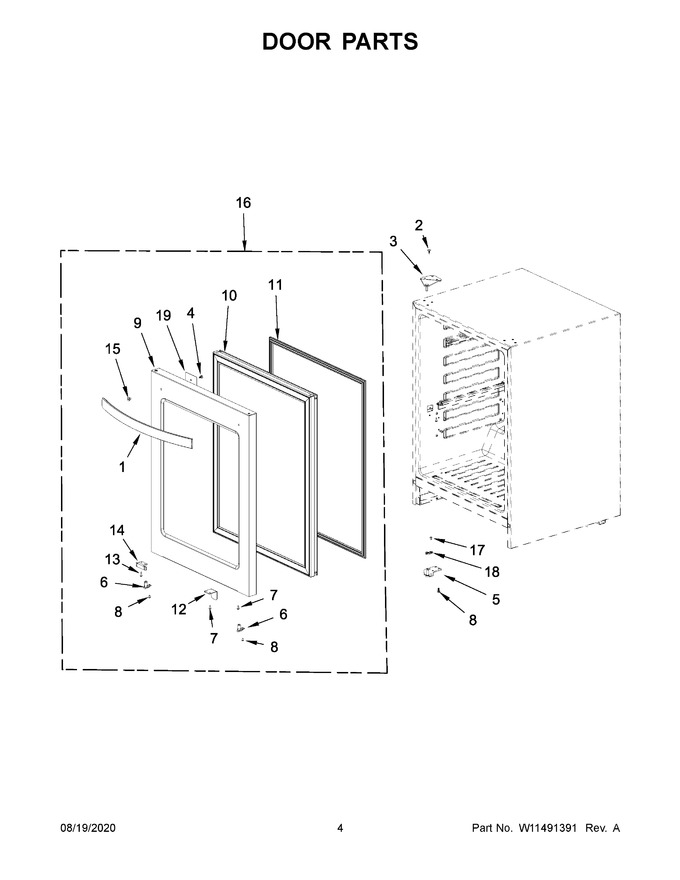

01 - Cover Sheet
02 - Cabinet Parts
03 - Door Parts
04 - Unit Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11265408 | Handle (Replaces: W11264680) |
|
- | |||||
| 2 | 4344796 | Screw |
|
$ 15.14 | |||||
| 3 | W11264668 | Hinge, Top (Replaces: W11312622) |
|
$ 67.89 | |||||
| 4 | W10319186 | Screw |
|
- | |||||
| 5 | W11312624 | Hinge, Bottom |
|
$ 68.46 | |||||
| 6 | W11266079 | Closer (Replaces: W11265573) |
|
$ 16.27 | |||||
| 7 | W11371097 | Screw |
|
- | |||||
| 8 | W11371100 | Screw |
|
- | |||||
| 9 | W11489778 | Wrap, Door (stainless) |
|
- | |||||
| 10 | W11301448 | Foam, Door |
|
- | |||||
| 11 | W11315259 | Gasket, Door (Replaces: W11312621) |
|
$ 280.37 | |||||
| 12 | W11264669 | Plate (Replaces: W11312687) |
|
$ 63.39 | |||||
| 13 | W11371345 | Screw |
|
$ 12.27 | |||||
| 14 | W11312648 | Stopper, Door |
|
- | |||||
| 15 | W11179356 | Stud, Mounting (Replaces: W10772902) |
|
$ 14.96 | |||||
| 16 | W11803128 | Assembly, Door (Replaces: W11369466) |
|
$ 903.29 | |||||
| 17 | W10243123 | Screw (Replaces: W10797377) |
|
$ 15.14 | |||||
| 18 | W11265406 | Washer (Replaces: W11264644) |
|
$ 14.04 | |||||
| 19 | W11263339 | Plate, Door Handle (Replaces: W11312690) |
|
$ 15.65 |
