SELECT A DIAGRAM

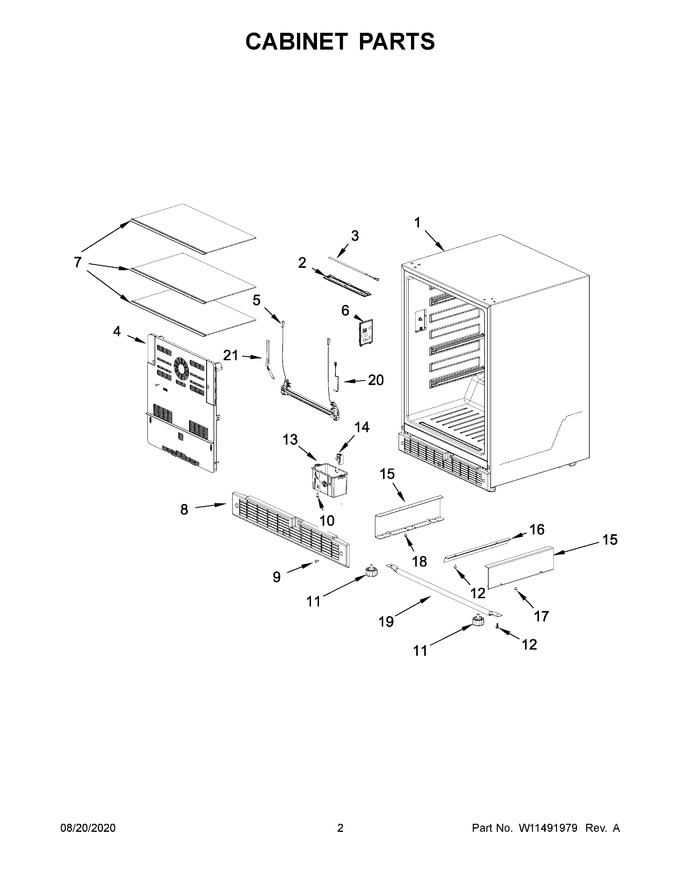

01 - Cover Sheet


02 - Cabinet Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Cabinet (not A Service Part)		Appelez-nous	-
2	W11312450		Cover, Led		Appelez-nous	-
3	W11497301		Assembly, Led   (Replaces: W11492253)				$ 73.85
4	W11371018		Assembly, Fan Cover (includes Fan Motor,and Sensor)		Appelez-nous	-
5	W11265404		Heater, Defrost   (Replaces: W11263845)		Appelez-nous	-
6	W11265409		Assembly, Control   (Replaces: W11263883)		Appelez-nous	-
7	W11266373		Glass Shelf   (Replaces: W11263886)		Appelez-nous	-
8	W11239541		Grille			Immediately	$ 71.96
9	W11675284		Screw   (Replaces: W11371095)				$ 14.35
10	W11371097		Screw		Appelez-nous	-
11	W11106296		Leg, Leveling   (Replaces: 4344763)				$ 17.13
12	W11371100		Screw		Appelez-nous	-
13	W11476540		Box, Switch   (Replaces: W11492236)				$ 51.82
14	W11266082		Switch, Door   (Replaces: W11265587)			Immediately	$ 36.73
15	W11313093		Support, Side		Appelez-nous	-
16	W11265577		Seal, Condenser		Appelez-nous	-
17	W11371101		Screw		Appelez-nous	-
18	W11371103		Screw		Appelez-nous	-
19	W11492233		Brace		Appelez-nous	-
20	W11266076		Sensor, Defrost   (Replaces: W11263884)				$ 109.50
21	W11359415		Temperature Fuse   (Replaces: W11378989)				$ 98.35
