01 - Cover Sheet
02 - Cooktop Parts

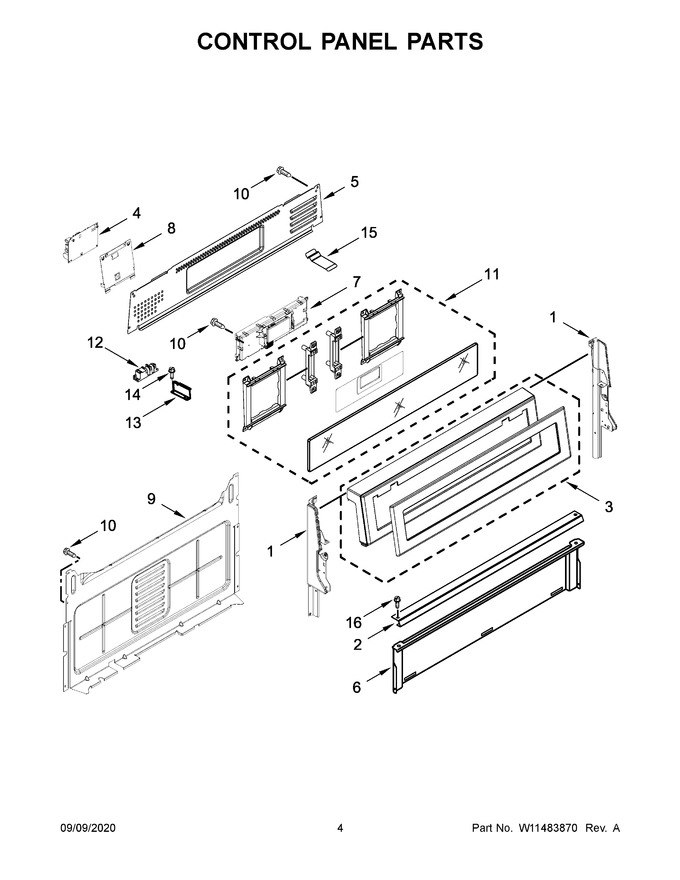

03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 38.21 | |||||
| 2 | W10516123 | Bracket, Console Mounting |
|
- | |||||
| 3 | W10645847 | Console Assembly (white) |
|
$ 282.30 | |||||
| 4 | W11162730 | Module, Spark Dsi (Replaces: W10920631) |
|
Immediately | $ 327.62 | ||||
| 5 | W10198745 | Cover, Upper |
|
$ 116.01 | |||||
| 6 | W10192841 | Shield, Heat |
|
$ 96.02 | |||||
| 7 | W11088878 | Control (maxwell) (Replaces: W10894864) |
|
$ 451.44 | |||||
| 8 | W10762981 | Bracket, Mounting |
|
$ 68.78 | |||||
| 9 | W10184251 | Cover, Back |
|
- | |||||
| 10 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 11 | W10645815 | Assembly, Active Overlay (white) |
|
$ 392.34 | |||||
| 12 | WPW10475149 | Module, Spark (5+0) (Replaces: W10475149) |
|
Immediately | $ 195.52 | ||||
| 13 | W10901176 | Bracket, Ignitor (Replaces: W10797001) |
|
- | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 15 | WPW10551614 | Spreader, Clip-spring (Replaces: W10551614) |
|
$ 12.36 | |||||
| 16 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 1A | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 54.75 |
