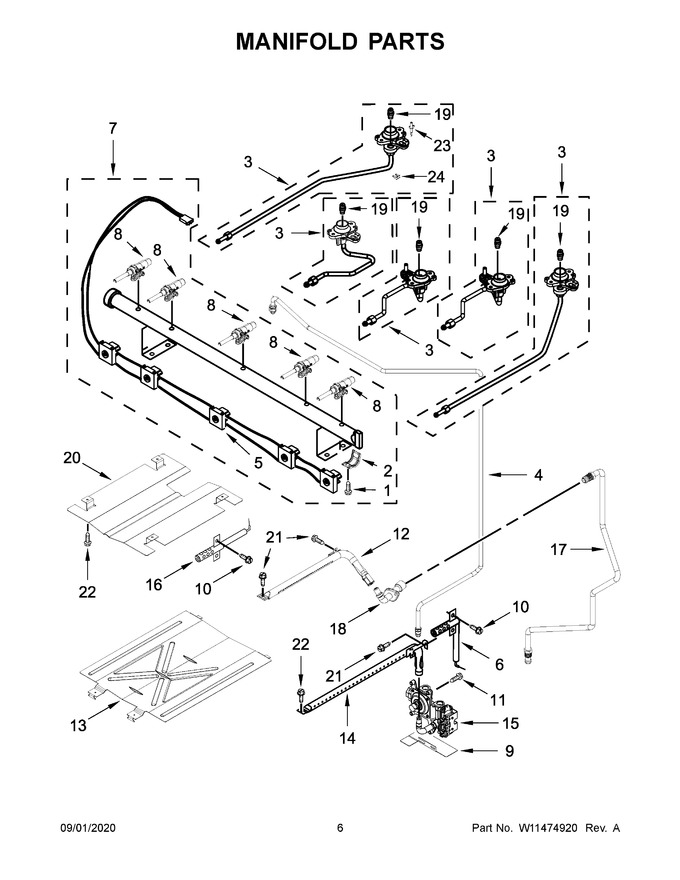

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.59 | |||||
| 2 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 3 | W11451468 | Orifice Holder Assembly (15k) (left Front) (Replaces: W11345008) |
|
$ 102.12 | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 143.42 | |||||
| 5 | W11233074 | Harness, Igniter (includes Switches) (Replaces: W10811691) |
|
$ 171.27 | |||||
| 6 | WP9758079 | Electrode, Bake (Replaces: 9758079) |
|
Immediately | $ 43.26 | ||||
| 7 | W11347745 | Manifold Assembly |
|
$ 274.82 | |||||
| 8 | W11628784 | Valve, Gas (left Front & Right Front) (Replaces: W11352012) |
|
$ 72.40 | |||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 11 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
Immediately | $ 215.42 | ||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 228.17 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 203.46 | |||||
| 15 | W11449506 | Regulator (Replaces: W11370883) |
|
$ 224.75 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W10420040 | Tube, Broiler Supply |
|
$ 175.09 | |||||
| 18 | W11435700 | Fitting, Broiler |
|
$ 80.18 | |||||
| 19 | W11428753 | Orifice (15k) (left Front & Right Front) |
|
Immediately | $ 74.94 | ||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | 3196265 | Screw |
|
- | |||||
| 22 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 23 | W11453940 | Electrode (left Front, Left Rear) (Replaces: W11428831) |
|
$ 58.01 | |||||
| 24 | W11684564 | Spring, Electrode (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 19A | W10849720 | Orifice (10k) (left Rear) |
|
$ 74.21 | |||||
| 19B | W11677633 | Orifice (5k) (right Rear) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 19C | W11429345 | Orifice (8k) (center) |
|
$ 77.57 | |||||
| 23A | W11453920 | Electrode (right Front, Right Rear, Center) (Replaces: W11428858) |
|
$ 57.92 | |||||
| 3A | W11453941 | Orifice Holder Assembly (9.5k) (left Rear) (Replaces: W11345009) |
|
$ 98.88 | |||||
| 3B | W11453919 | Orifice Holder Assembly (15k) (right Front) (Replaces: W11345011) |
|
$ 101.80 | |||||
| 3C | W11453921 | Orifice Holder Assembly (5k) (right Rear) (Replaces: W11345010) |
|
$ 98.69 | |||||
| 3D | W11453942 | Orifice Holder Assembly (8k) (center) (Replaces: W11345012) |
|
$ 92.11 | |||||
| 8A | W11699929 | Valve, Gas (left Rear, Center) (Replaces: W11352013) |
|
$ 63.42 | |||||
| 8B | W11352015 | Valve, Gas (center) |
|
$ 101.74 | |||||
| NI | WPW10400495 | Orifice, Lp Bake (Replaces: W10400495) |
|
$ 84.89 | |||||
| NI | W10758273 | Orifice, Lp Broil (Replaces: W10465080) |
|
$ 7.68 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11453918 | Lp 5 Orifice Conversion Kit (Replaces: W11415424) |
|
$ 35.07 | |||||
| NI | W11126051 | Lp Bake And Broil Kit (Replaces: W10566537) |
|
$ 116.14 |
