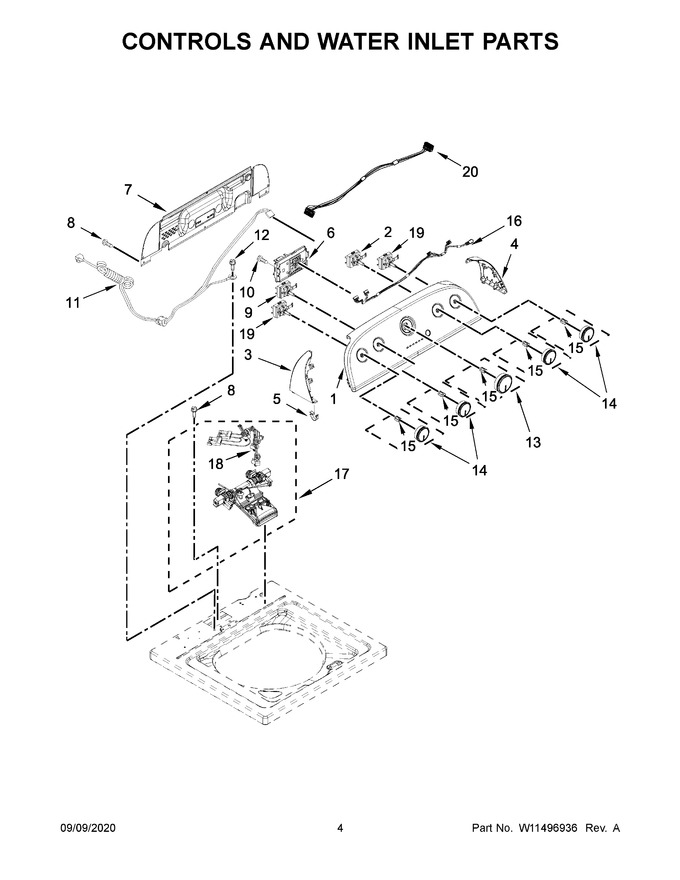

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11223397 | Panel, Console (Replaces: W11158222) |
|
$ 341.32 | |||||
| 2 | WPW10285512 | Switch, Rotary Encoder (4 Position) (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 3 | WPW10520782 | End Cap (left) (white) (Replaces: W10520782) |
|
$ 58.22 | |||||
| 4 | WPW10520780 | End Cap (right) (white) (Replaces: W10520780) |
|
$ 57.91 | |||||
| 5 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 6 | W11498796 | Control Unit Assembly, Machine And Motor (Replaces: W11476586) |
|
$ 319.82 | |||||
| 7 | W10552335 | Panel, Console Rear Cover |
|
$ 308.85 | |||||
| 8 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 9 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 142.31 | ||||
| 10 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 11 | W10877409 | Cord, Power (Replaces: W10737739) |
|
$ 117.00 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11501455 | Knob, Timer (white/metallic) (Replaces: W10576634) |
|
$ 41.20 | |||||
| 14 | W10576636 | Assembly, Control Knob (white/metallic) |
|
- | |||||
| 15 | WP688805 | Clip, Spring (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 16 | W11211519 | Harness, Upper (Replaces: W10694680) |
|
$ 166.32 | |||||
| 17 | W11038689 | Inlet Assembly, Water (Replaces: W10869800) |
|
Immediately | $ 127.65 | ||||
| 18 | W10868094 | Harness, Valve |
|
$ 167.50 | |||||
| 19 | WPW10285511 | Switch, Rotary Encoder (2 Position) (Replaces: W10285511) |
|
Immediately | $ 163.89 | ||||
| 20 | W10786100 | Harness, Jumper |
|
$ 170.98 |
