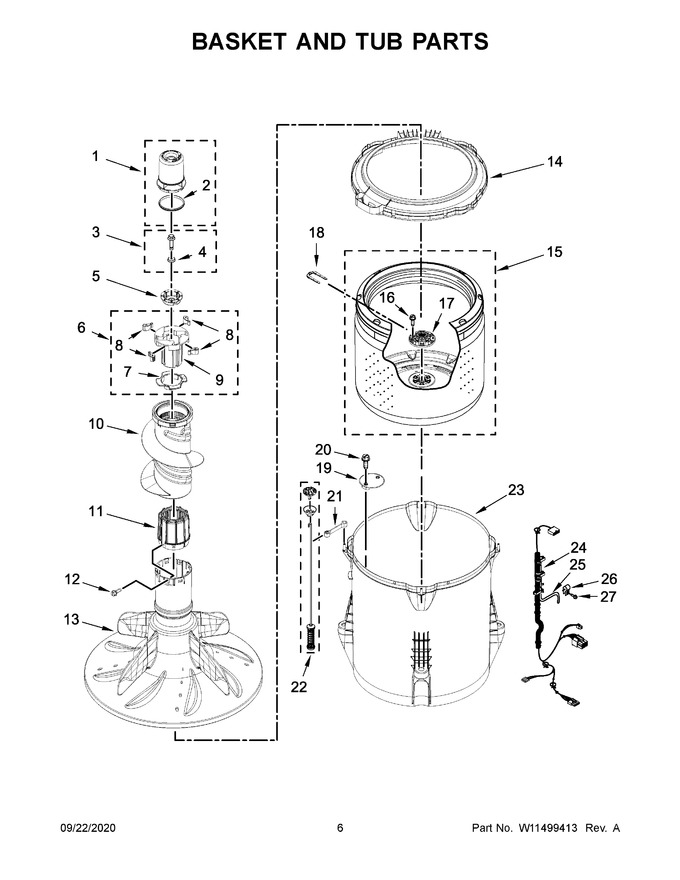

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11160642 | Dispenser, Fabric Softener (Replaces: W10860509) |
|
Immediately | $ 76.25 | ||||
| 2 | WP358912 | Seal, Cap (Replaces: 358912) |
|
$ 7.44 | |||||
| 3 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 4 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 5 | W11661945 | Retainer, Cam (Replaces: W10715784) |
|
Immediately | $ 114.84 | ||||
| 6 | W11158175 | Assembly, Cam Complete (Replaces: W10782372) |
|
Immediately | $ 54.26 | ||||
| 7 | WP8055141 | Bearing, Cam (Replaces: 8055141) |
|
Immediately | $ 7.32 | ||||
| 8 | 80040 | Dog, Agitator Clutch (Replaces: 3366877) |
|
Immediately | $ 3.28 | ||||
| 9 | 285825 | Agitator, Cam (Replaces: 8055142) |
|
$ 100.90 | |||||
| 10 | W11480892 | Auger, Agitator (Replaces: W11182552) |
|
Immediately | $ 91.59 | ||||
| 11 | W11561052 | Couple, Agitator (Replaces: W10715787) |
|
Immediately | $ 37.85 | ||||
| 12 | W11596047 | Screw (Replaces: W10908157) |
|
$ 8.37 | |||||
| 13 | W11418231 | Base, Agitator (Replaces: W10715783) |
|
Immediately | $ 91.67 | ||||
| 14 | WPW10556325 | Tub Ring (Replaces: W10556325) |
|
Immediately | $ 183.74 | ||||
| 15 | W11436991 | Basket Assembly |
|
Immediately | $ 392.52 | ||||
| 16 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 17 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 40.16 | ||||
| 18 | W11385424 | Retainer, Drive Block (Replaces: W11284133) |
|
Immediately | $ 11.67 | ||||
| 19 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 20 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 21 | W11403873 | Strap, Snubber (Replaces: W10839119) |
|
Immediately | $ 22.27 | ||||
| 22 | W11682068 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W10821954) |
|
Immediately | $ 83.03 | ||||
| 23 | W10324648 | Tub (Replaces: W10238301) |
|
$ 325.67 | |||||
| 24 | W11744742 | Harness, Lower (includes Pressure Hose) (Replaces: W10843660) |
|
Immediately | $ 105.10 | ||||
| 25 | WP353244 | Hose, Pressure Switch (Replaces: W10531633) |
|
Immediately | $ 78.00 | ||||
| 26 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 27 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 |
