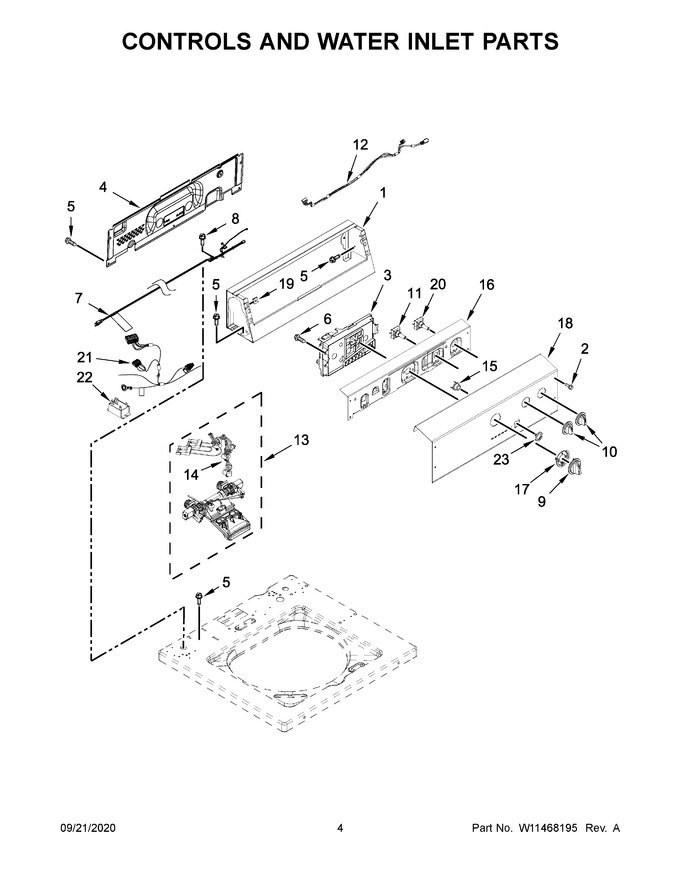

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11124005 | Console |
|
$ 214.58 | |||||
| 2 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 6.57 | |||||
| 3 | W11831578 | Control Unit Assembly, Machine & Motor (Replaces: W11447258) |
|
Immediately | $ 286.41 | ||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 5 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 7 | W11676810 | Cord, Power (Replaces: W10916256) |
|
$ 61.51 | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 9 | W11103226 | Assembly, Timer Knob (gray) (Replaces: W10133504) |
|
$ 64.13 | |||||
| 10 | W11199426 | Knob & Bumper Assembly (gray) (Replaces: W10461097) |
|
$ 8.73 | |||||
| 11 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 142.31 | ||||
| 12 | W11108620 | Harness, Jumper |
|
$ 31.70 | |||||
| 13 | W11205048 | Inlet Assembly, Water (Replaces: W10843663) |
|
Immediately | $ 173.90 | ||||
| 14 | W10843398 | Harness, Valve |
|
$ 133.47 | |||||
| 15 | WPW10461117 | Push Button, Start (Replaces: W10461117) |
|
$ 65.12 | |||||
| 16 | W10918905 | Bracket, Back |
|
- | |||||
| 17 | W10828903 | Insert, Encoder Stop (7 Position) |
|
- | |||||
| 18 | W11158153 | Fascia (Replaces: W10918901) |
|
- | |||||
| 19 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 7.29 | |||||
| 20 | WPW10285512 | Switch, Rotary Encoder (4 Position) (Replaces: W10285512) |
|
Immediately | $ 171.42 | ||||
| 21 | W11736785 | Harness, Upper (Replaces: W10843661) |
|
Immediately | $ 132.20 | ||||
| 22 | W11384790 | Relay (Replaces: W11032871) |
|
Immediately | $ 70.63 | ||||
| 23 | W10510149 | Bezel - Pts |
|
Immediately | $ 25.77 |
