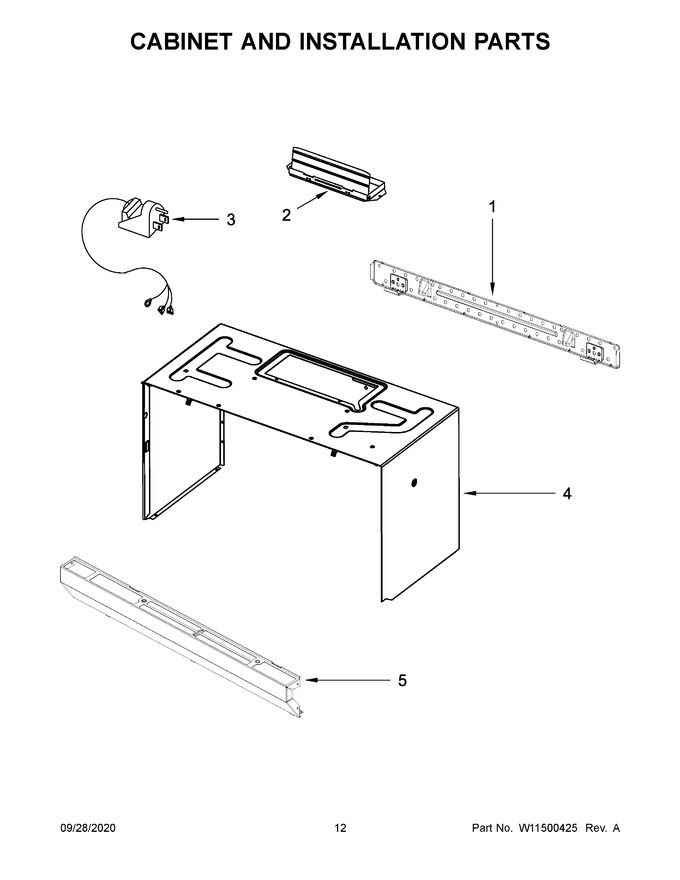

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting |
|
Immediately | $ 22.22 | ||||
| 2 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 76.13 | ||||
| 3 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 19.40 | |||||
| 4 | W11783245 | Case, Outer (white) (Replaces: W11446917) |
|
Immediately | $ 163.94 | ||||
| 5 | W10845642 | Grille, Vent (white) |
|
$ 91.04 | |||||
| 4A | W11776420 | Case, Outer (black) (Replaces: W11446916) |
|
Immediately | $ 163.94 | ||||
| 5A | W10845643 | Grille, Vent (black) |
|
$ 97.52 | |||||
| NI | W11301790 | Miscellaneous Parts, Harness, Magnetron To High Voltage Transformer |
|
Immediately | $ 137.70 | ||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.80 | ||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 12.02 | ||||
| NI | W11350914 | Miscellaneous Parts, Harness, Main |
|
$ 66.11 | |||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 22.57 | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 93.35 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 |
