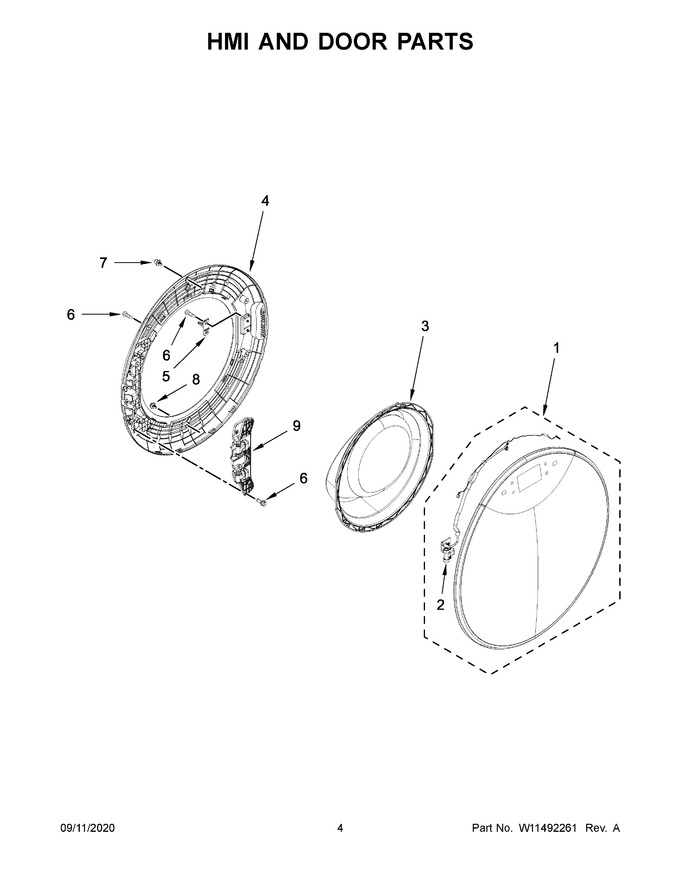

03 - Hmi And Door Parts
04 - Dispenser Parts
05 - Water System Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11712611 | Assembly, Outer Door (chrome Shadow) (Replaces: W11327974) |
|
Immediately | $ 753.52 | ||||
| 2 | W11338345 | Harness, Tube Assembly (Replaces: W11114000) |
|
$ 162.40 | |||||
| 3 | W11316777 | Door, Clear Insert (Replaces: W11171604) |
|
$ 282.33 | |||||
| 4 | W11097034 | Door, Inner |
|
$ 154.58 | |||||
| 5 | W11316914 | Strike, Door (Replaces: W10921697) |
|
Immediately | $ 25.85 | ||||
| 6 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 7 | W11230200 | Bumper, Door (upper) |
|
$ 21.31 | |||||
| 8 | W11310051 | Bumper, Door (lower) (Replaces: W11178950) |
|
Immediately | $ 22.31 | ||||
| 9 | W11310038 | Hinge Assembly (Replaces: W11114002) |
|
$ 98.44 |
