SELECT A DIAGRAM
01 - Cover Sheet

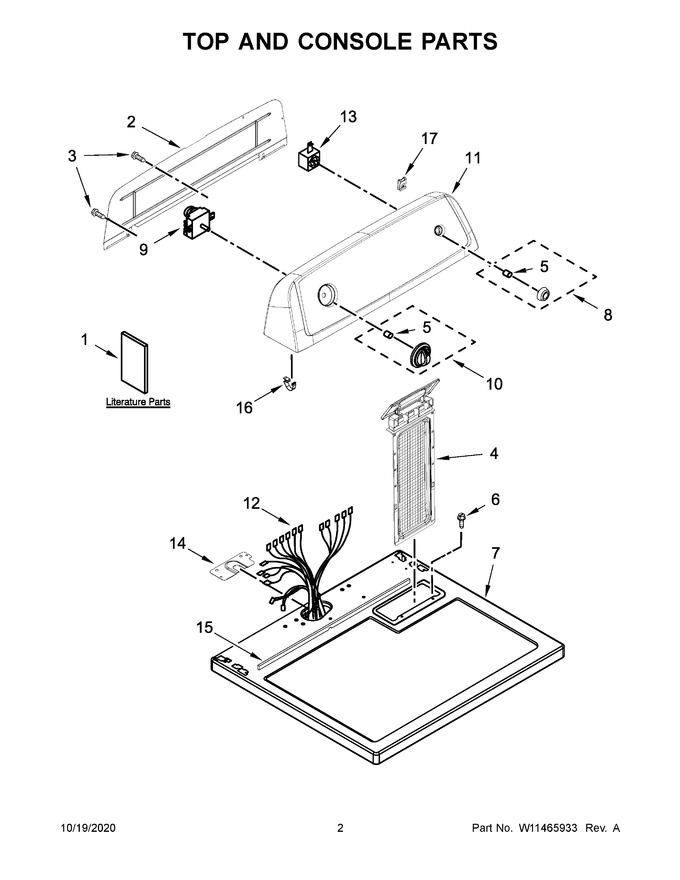

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11361424 | Owners Manual Quick Start Guide |
|
- | |||||
| 2 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 119.15 | |||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W11778253 | Lint Screen (white) (Replaces: W10717210) |
|
Immediately | $ 49.17 | ||||
| 5 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 6 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 7 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 8 | WPW10453948 | Knob, Push To Start (white) (Replaces: W10453948) |
|
$ 46.20 | |||||
| 9 | W10857611 | Timer Assembly (Replaces: W10745654) |
|
$ 309.92 | |||||
| 10 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10711289) |
|
Immediately | $ 7.50 | ||||
| 11 | WPW10097039 | Panel, Control (Replaces: W10097039) |
|
$ 299.48 | |||||
| 12 | W10865760 | Harness, Wiring |
|
$ 218.10 | |||||
| 13 | WPW10420741 | Switch, Push To Start (Replaces: W10420741) |
|
Immediately | $ 32.81 | ||||
| 14 | W10112578 | Bracket, Harness |
|
- | |||||
| 15 | W10316616 | Seal, Foam |
|
$ 25.01 | |||||
| 16 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 17 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 1A | W10876313 | Wiring Diagram |
|
- |
