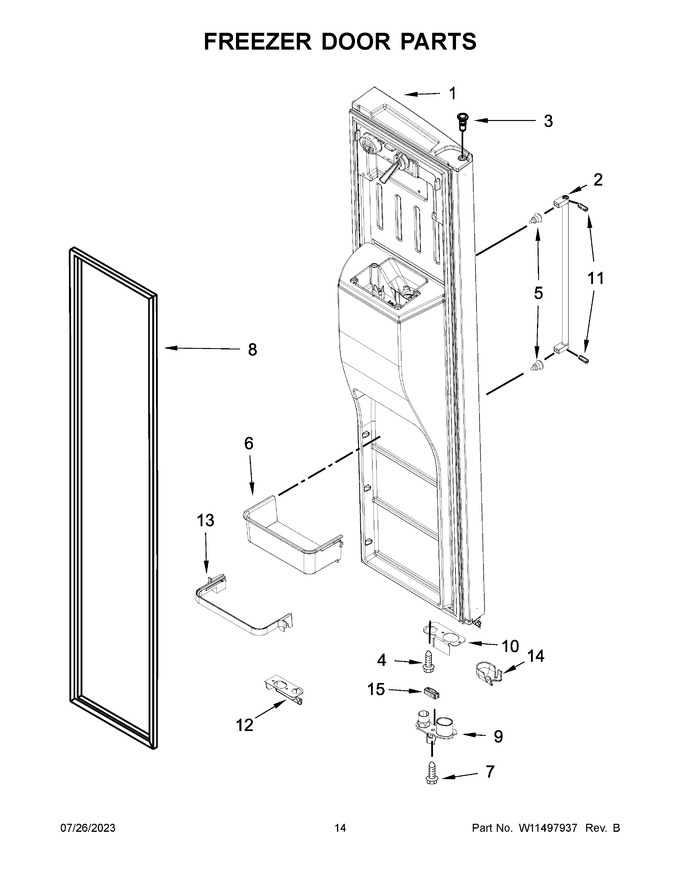

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11465919 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (black Stainless) |
|
$ 1,047.79 | |||||
| 2 | W11340150 | Handle (stainless) (Replaces: W11252159) |
|
$ 180.17 | |||||
| 3 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 4 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 5 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 6 | WPW10434529 | Bin, Door (Replaces: W10434529) |
|
$ 70.00 | |||||
| 7 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 8 | WPW10249913 | Gasket, Door (black) (Replaces: W10249913) |
|
$ 288.95 | |||||
| 9 | W11607100 | Closer, Upper Cam Door (black) (Replaces: W10257204) |
|
Immediately | $ 12.58 | ||||
| 10 | W11293380 | Bracket, Door Stop (Replaces: W10247907) |
|
$ 62.29 | |||||
| 11 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 6.80 | ||||
| 12 | WPW10632062 | Cover, Door Stop (grey) (Replaces: W10632062) |
|
$ 6.80 | |||||
| 13 | WPW10494336 | Frame, Door Bin (Replaces: W10494336) |
|
$ 219.25 | |||||
| 14 | W10323148 | Cover, Wire |
|
$ 38.03 | |||||
| 15 | W10407187 | Bumper, Door (black) |
|
$ 43.51 | |||||
| 15A | W11573367 | Bumper, Door (grey) (Replaces: W10407188) |
|
Immediately | $ 21.02 | ||||
| 1A | W11465916 | Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless) (Replaces: W11408303) |
|
$ 1,042.84 | |||||
| 8A | WPW10355585 | Gasket, Door (grey) (Replaces: W10249917) |
|
$ 303.54 | |||||
| 9A | WPW10257206 | Closer, Upper Cam Door (grey) (Replaces: W10257206) |
|
Immediately | $ 11.86 |
