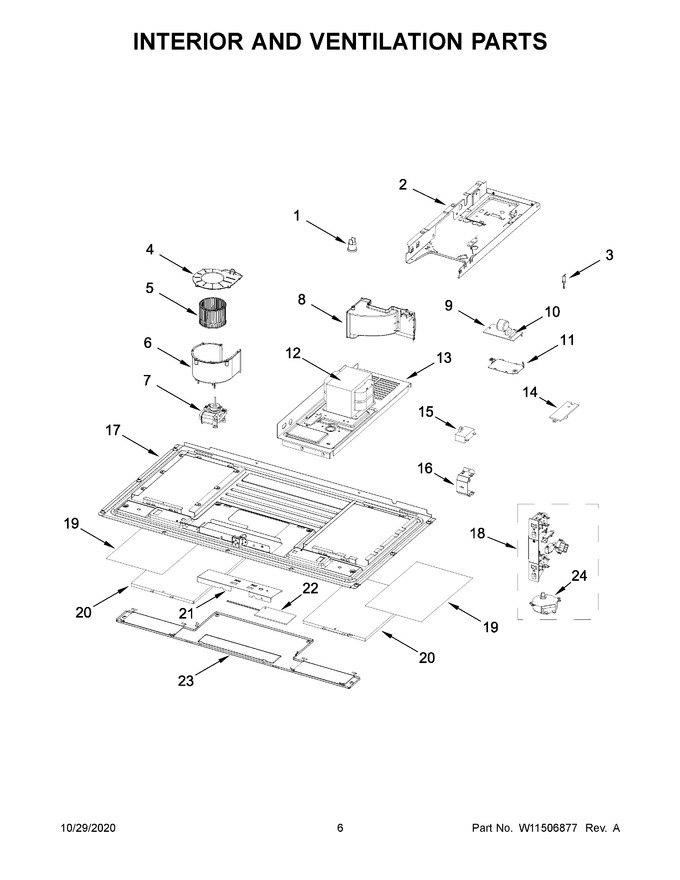

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11213317		Thermostat, Cavity   (Replaces: W11125677)				$ 83.00
2	W11086279		Plate, Chassis		Appelez-nous	-
3	W11817793		Diode, High Voltage   (Replaces: W10492278)		Appelez-nous	-
4	W11752349		Cover, Cooling Fan   (Replaces: W11088345)				$ 25.51
5	W11088354		Wheel, Cooling Fan			Immediately	$ 90.03
6	W11213349		Housing, Cooling Fan   (Replaces: W11088352)				$ 73.02
7	W11443154		Motor, Cooling Fan   (Replaces: W11325927)			Immediately	$ 83.75
8	W11088358		Air Guide, Magnetron		Appelez-nous	-
9	WPW10531156		Board, Filter   (Replaces: W10531156)			Immediately	$ 51.19
10	W11707984		Fuse   (Replaces: W10138793)			Immediately	$ 41.27
11	W10313274		Bracket, Noise Filter				$ 29.09
12	W11628655		Transformer, High Voltage   (Replaces: W11334531)			Immediately	$ 315.82
13	W11164809		Chassis, Transformer				$ 117.05
14	W10536989		Thermistor, Pcba			Immediately	$ 34.81
15	W11213318		Capacitor, High Voltage   (Replaces: W11196080)				$ 172.81
16	W11095808		Bracket, Capacitor		Appelez-nous	-
17	W11159942		Plate, Bottom			Immediately	$ 132.04
18	W11497298		Assembly, Interlock (includes Switches)   (Replaces: W11474649)			Immediately	$ 61.96
19	W11322423		Filter, Charcoal   (Replaces: W11284565)			Immediately	$ 31.56
20	W11213913		Filter, Grease   (Replaces: W11206152)			Immediately	$ 34.09
21	W11086295		Reflector, Lamp				$ 70.66
22	W11443139		Lamp, Led   (Replaces: W11384716)				$ 76.33
23	W11206153		Assembly, Glass Holder				$ 128.08
24	W11545873		Motor, Door Eject   (Replaces: W11044953)			Immediately	$ 46.63

    View Diagram in Separate Window       Print Part List
