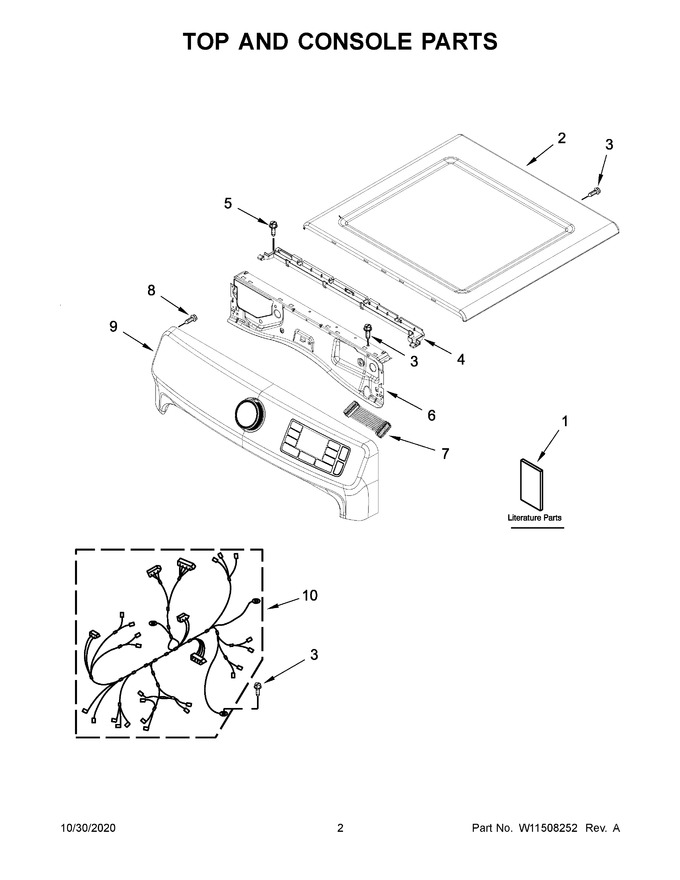

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11364660 | Owners Manual |
|
- | |||||
| 2 | WPW10208383 | Top (white) (Replaces: W10208383) |
|
$ 291.54 | |||||
| 3 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 4 | W11310027 | Channel, Water (Replaces: W11255768) |
|
$ 21.37 | |||||
| 5 | W11686675 | Screw (Replaces: 12990702) |
|
$ 12.84 | |||||
| 6 | W11480682 | Bracket, Console (Replaces: W10208198) |
|
$ 73.09 | |||||
| 7 | W11316625 | Jumper, Harness Hmi (board To Board) (Replaces: W10920818) |
|
$ 158.84 | |||||
| 8 | WP8533993 | Screw (Replaces: W10146359) |
|
$ 10.09 | |||||
| 9 | W11384511 | Assembly, Console (white) (Replaces: W11314476) |
|
$ 531.47 | |||||
| 10 | W11109749 | Harness, Wiring (main) |
|
Immediately | $ 150.34 | ||||
| 1A | W11459720 | Tech Sheet |
|
- | |||||
| 1B | W11460669 | Wiring Diagram |
|
- | |||||
| 1C | W11356334 | Quick Start Guide |
|
- |
