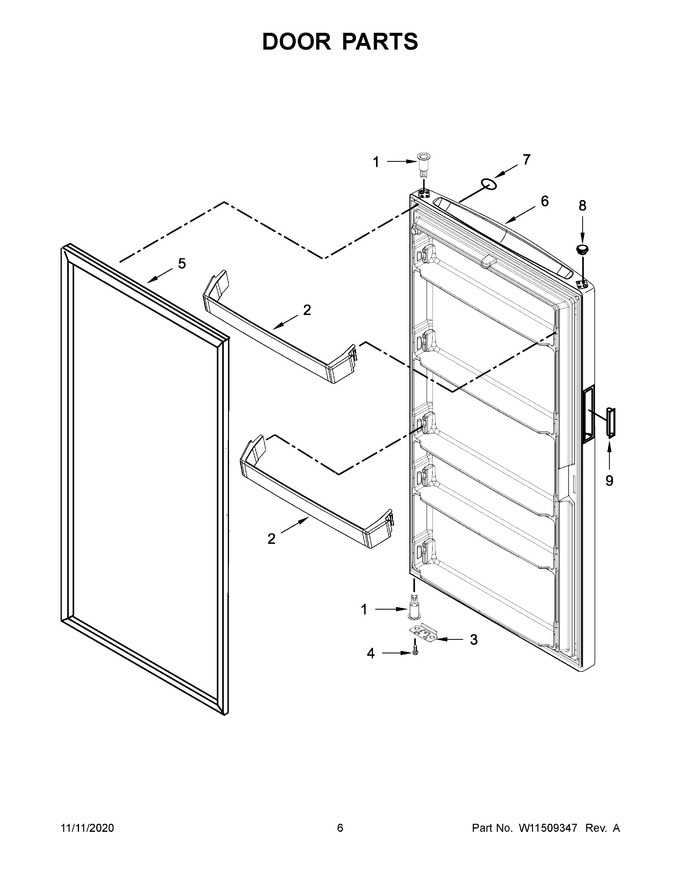

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 2 | W10737497 | Rail, Door Shelf |
|
$ 87.07 | |||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 23.69 | |||||
| 4 | 7101P35660 | Screw |
|
- | |||||
| 5 | W10850441 | Gasket, Door (white) (Replaces: W10574473) |
|
$ 374.00 | |||||
| 6 | W10746780 | Assembly, Door (includes Handle Cup) (white) (Replaces: W10673692) |
|
$ 851.90 | |||||
| 7 | WPW10612925 | Badge (Replaces: W10612925) |
|
Immediately | $ 38.12 | ||||
| 8 | WP2212648 | Plug, Hole (white) (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 9 | W10352523 | Handle, Cup (white) |
|
$ 22.68 |
