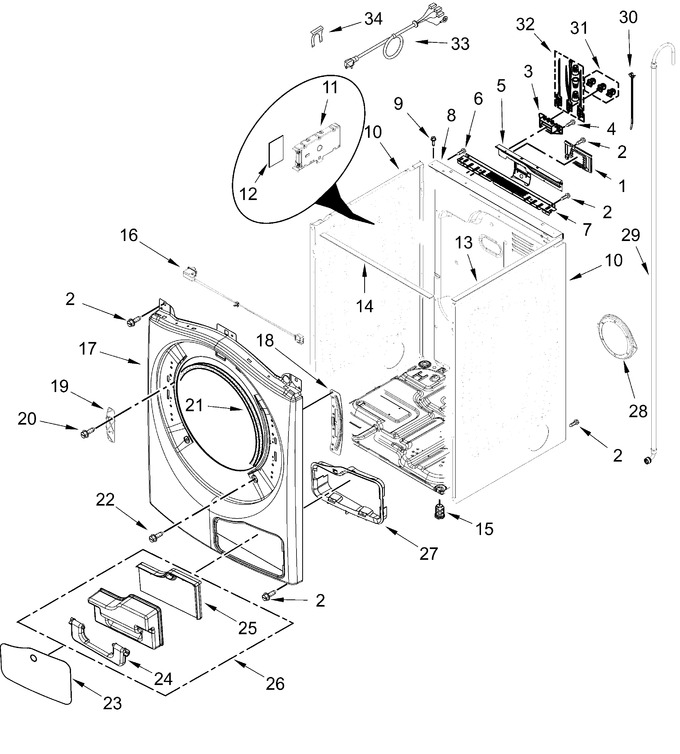

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Base Parts
Bulkhead Parts
Cabinet Parts
Door Parts
Optional Parts (not Included)
Top And Console Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11662367 | Terminal Block Cover (Replaces: W11394868) |
|
$ 65.84 | |||||
| 2 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | WP3397659 | Terminal Block (Replaces: 3397659) |
|
$ 21.75 | |||||
| 4 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 5 | W10668463 | Bracket, Terminal Cross Bar |
|
- | |||||
| 6 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 7 | WPW10208382 | Bracket, Rear (Replaces: W10208382) |
|
$ 41.56 | |||||
| 8 | W10524494 | Panel, Rear |
|
$ 269.31 | |||||
| 9 | WP489463 | Screw (Replaces: 489463) |
|
$ 7.43 | |||||
| 10 | W11233548 | Panel, Side (white) (Replaces: W11177568) |
|
$ 235.20 | |||||
| 11 | W11565028 | Appliance Control Unit (acu) (Replaces: W11461222) |
|
Immediately | $ 300.63 | ||||
| 12 | W11409002 | Pad, Foam (Replaces: W10504381) |
|
$ 21.38 | |||||
| 13 | W10686117 | Strip Seal |
|
- | |||||
| 14 | W10608849 | Strip Seal |
|
$ 22.64 | |||||
| 15 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 16 | W11551763 | Door Switch Assembly (Replaces: W11307535) |
|
Immediately | $ 29.94 | ||||
| 17 | W11756134 | Front Panel (white) (Replaces: W11714854) |
|
Immediately | $ 205.80 | ||||
| 18 | W11310030 | Hinge Bracket (Replaces: W11084215) |
|
$ 22.24 | |||||
| 19 | W11310031 | Door Strike (Replaces: W11126752) |
|
$ 26.15 | |||||
| 20 | W11661566 | Screw (Replaces: W10288126) |
|
$ 13.26 | |||||
| 21 | WP3387242 | Seal, Front Panel (Replaces: 3387242) |
|
Immediately | $ 28.28 | ||||
| 22 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 23 | W11611670 | Secondary Lint Door (Replaces: W11108733) |
|
Immediately | $ 32.73 | ||||
| 24 | W10739609 | Secondary Lint Handle Assembly |
|
$ 77.30 | |||||
| 25 | W11199484 | Secondary Lint Filter (Replaces: W10739605) |
|
Immediately | $ 95.49 | ||||
| 26 | W10897401 | Box Assembly, Secondary Lint (Replaces: W10802056) |
|
Immediately | $ 256.96 | ||||
| 27 | W11194428 | Secondary Lint Bezel Assembly (white) |
|
Immediately | $ 83.14 | ||||
| 28 | W10810480 | Fan Guard |
|
$ 18.81 | |||||
| 29 | W11169712 | Hose, Outlet (Replaces: W10705660) |
|
Immediately | $ 83.77 | ||||
| 30 | WP3391018 | Tie, Cable (Replaces: 3391018) |
|
$ 30.09 | |||||
| 31 | 279393 | Screw Kit, Terminal Block |
|
Immediately | $ 50.09 | ||||
| 32 | 279318 | Terminal, Brass And Tinned (includes Terminal Block Screw Kit) |
|
Immediately | $ 95.44 | ||||
| 33 | W11710615 | Cord, Power (Replaces: W10712173) |
|
Immediately | $ 78.30 | ||||
| 34 | W11712577 | Clip, Strain Relief (Replaces: 694415) |
|
Immediately | $ 6.99 |
