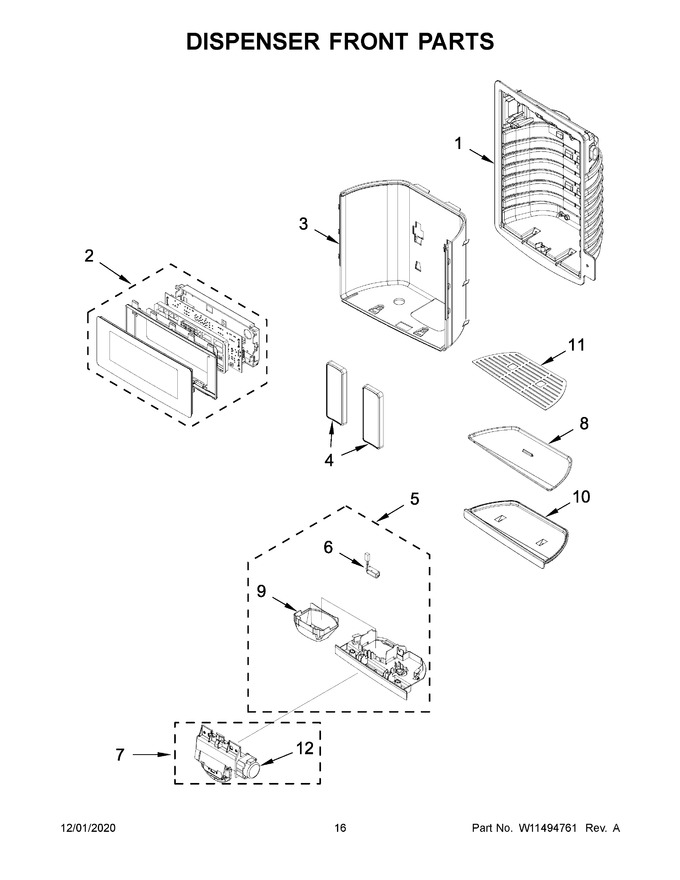

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Following Parts Not Illustrated |
|
- | |||||
| 2 | W11405309 | Assembly, User Interface (black) (Replaces: W11117273) |
|
$ 307.31 | |||||
| 3 | W10486345 | Wall, Dispenser False (white) |
|
- | |||||
| 4 | W10317250 | Assembly, Pad (white) |
|
$ 289.66 | |||||
| 5 | W10836794 | Assembly, Separator (Replaces: W10394101) |
|
$ 173.42 | |||||
| 6 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 76.01 | |||||
| 7 | WPW10606117 | Assembly, Ice Door (Replaces: W10606117) |
|
$ 173.05 | |||||
| 8 | W10347142 | Insert, Drip Tray (white) |
|
- | |||||
| 9 | WPW10435760 | Guide, Ice (Replaces: W10435760) |
|
Immediately | $ 21.55 | ||||
| 10 | W10347140 | Tray, Dispenser (white) |
|
- | |||||
| 11 | WPW10542708 | Grate, Drip Tray (Replaces: W10542708) |
|
$ 71.59 | |||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 96.84 |
